30297 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210005000) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 17hp

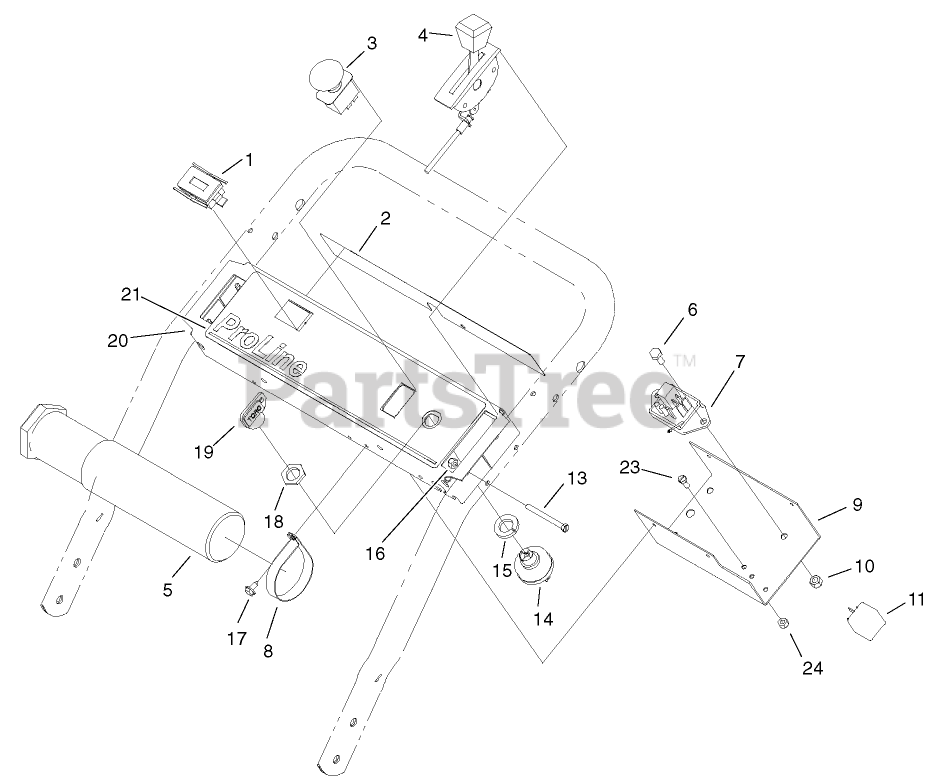

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8143

HOURMETER

$269.99

$

Usually ships in 3-6 days

0

2

Toro 95-1544

DECAL-WARNING

$

$

Not available

3

Toro 104-8140

SWITCH-PTO

$77.99

$

In Stock, only 1 left!

0

4

Toro 100-6450

CONTROL-THROTTLE

$112.99

$

Usually ships in 3-6 days

0

5

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8141

MODULE-DELAY

$65.99

$

In Stock, Qty 8

0

8

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

9

Toro 93-1187-03

PANEL-BOTTOM

$48.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 98-7249

RELAY

$22.99

$

In Stock, only 1 left!

0

13

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 116338

KEY SWITCH ASM

$76.99

$

In Stock, only 2 left!

0

15

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

19

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

20

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

21

Toro 104-8178

DECAL-CONTROL PANEL

$

$

Not available

23

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

24

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
