30292 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210005001 - 210999999) (2001) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 15hp

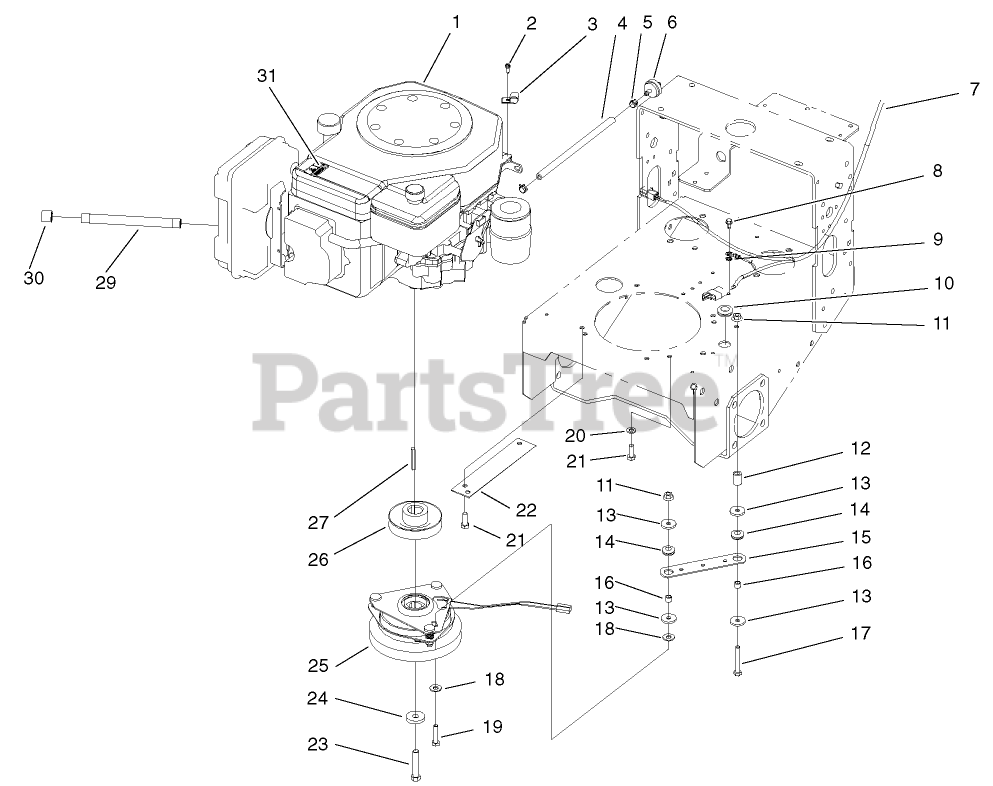

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Engine-Kohler, Cv15t-41604

Note: Not serviced

$

$

Not available

2

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

5

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

6

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 5

0

7

Toro 104-8136

HARNESS-WIRE

$334.99

$

Usually ships in 3-6 days

0

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

9

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

13

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

14

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

15

Toro 1-633543

STRAP-CLUTCH/BRAKE

$

$

Not available

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

22

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

23

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

24

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

25

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

26

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

27

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

29

Toro 105-2624

PIPE-NIPPLE

$108.99

$

Usually ships in 3-6 days

0

30

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

31

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

34

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7
