30292 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210005000) (2001) LOWER CONTROLS ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 15hp

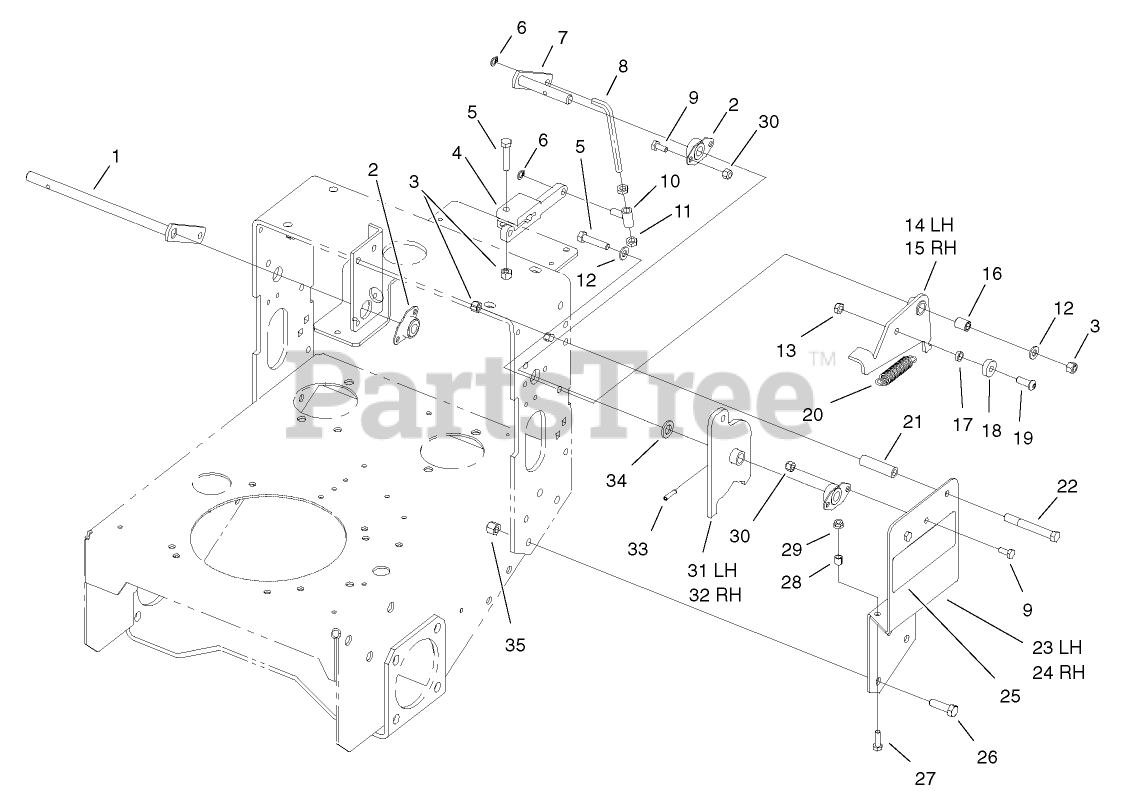

LOWER CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 94-9059

LEVER-PIVOT, RH

$

$

Not available

2

Toro 82-4130

SIDE FLANGE BEARING ASM

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-3790

ARM-PUMP

$

$

Not available

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 32151-3

RING-GRIP

$6.99

$

In Stock, only 3 left!

0

7

Toro 94-9057

LEVER-PIVOT, LH

$

$

Not available

8

Toro 104-8109

ROD-LINK

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 94-9062

SLEEVE

$

$

Not available

11

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

14

Toro 82-4330-01

ARM-DETENT, LH

$

$

Not available

15

Toro 82-4340-01

ARM-DETENT, RH

Note: Not illustrated

$

$

Not available

16

Toro 82-4370

BUSHING-ARM, DETENT

$12.99

$

Usually ships in 3-6 days

0

17

Toro 82-4240

SPACER-BEARING

$6.99

$

Usually ships in 3-6 days

0

18

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

19

Toro 3274-32

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

20

Toro 82-4160

SPRING-DETENT
(Superseded to 105-1210)

$21.99

$

Usually ships in 3-6 days

0

21

Toro 105-1210

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

22

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

23

Toro 104-8106-01

BRACKET-PIVOT, LEFT

$

$

Not available

24

Toro 104-8107-01

BRACKET-PIVOT, RIGHT

Note: Not illustrated

$94.99

$

Usually ships in 3-6 days

0

25

Toro 82-4600

DECAL-HYDRO

$

$

Not available

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 95-1516

SPACER-TUBULAR

$

$

Not available

29

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

31

Toro 94-9054-01

ARM-PIVOT, LH

$

$

Not available

32

Toro 94-9061-01

ARM-PIVOT, RH

Note: Not illustrated

$

$

Not available

33

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

34

Toro 257-5

WASHER-THRUST

$2.49

$

Usually ships in 3-6 days

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
