30291 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210005000) (2001) BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 15hp

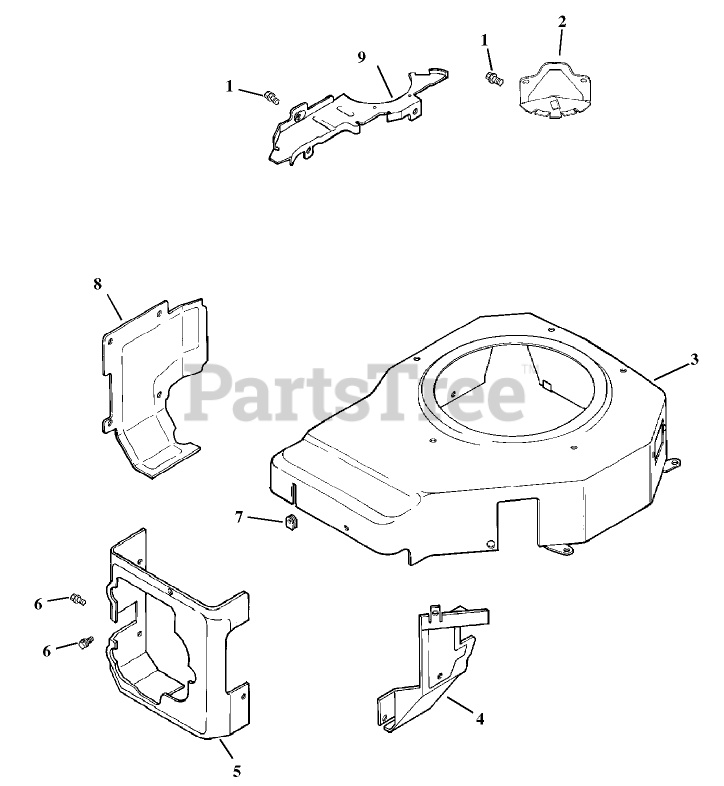

BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

  • Title
1

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 1 left!

0

2

Kohler 12 096 29-S

Cover-Starter

Note: Order Parts from Kohler

$12.99

$

Usually ships in 2-5 days

0

3

Kohler 12 027 68-S

Housing-Blower

Note: Order Parts from Kohler

$220.99

$

Usually ships in 2-5 days

0

4

Kohler 12 063 10-S

Baffle-Side, Intake

Note: Order Parts from Kohler

$47.99

$

Usually ships in 2-5 days

0

5

Kohler 12 063 08-S

Baffle-Head, Cylinder

Note: Order Parts from Kohler

$48.99

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Order Parts from Kohler

$4.49

$

In Stock, only 3 left!

0

7

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Order Parts from Kohler

$

$

Not available

8

Kohler 12 063 19-S

Baffle-Cylinder

Note: Order Parts from Kohler

$

$

Not available

9

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Order Parts from Kohler

$9.49

$

Usually ships in 2-5 days

0

Kohler 12 146 21-S

Decal-15 HP
(Superseded to 12 113 112-S)

Note: Order Parts from Kohler

$

$

Not available

Kohler 12 146 21-S

Decal-15 HP
(Superseded to 12 113 112-S)

Note: Not illustrated

$

$

Not available
