30290 - Toro 36" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210005001 - 210999999) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Hydro Drive, 15hp

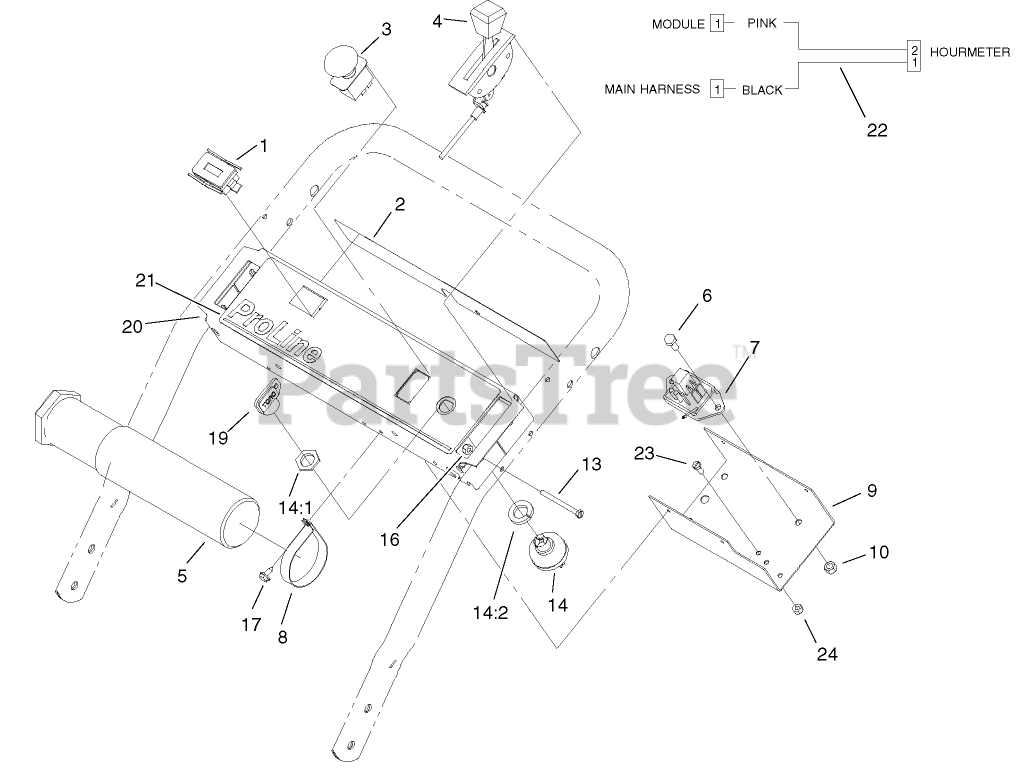

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8143

HOURMETER

$

$

Not available

2

Toro 95-1544

DECAL-WARNING

$

$

Not available

3

Toro 104-8140

SWITCH-PTO

$79.99

$

Usually ships in 3-6 days

0

4

Toro 74-0630

CONTROL-THROTTLE

$126.99

$

Usually ships in 3-6 days

0

5

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8141

MODULE-DELAY

$68.99

$

In Stock, Qty 8

0

8

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

9

Toro 93-1187-03

PANEL-BOTTOM

$49.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

14

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

14:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

14:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

20

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

21

Toro 104-8196

DECAL-PANEL, CONTROL

$

$

Not available

22

Toro 105-0843

HARNESS-WIRE, HOURMETER

Note: Not illustrated

$

$

Not available

23

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

24

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
