30288 - Toro 48" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) POWER-TAKE-OFF IDLER AND WEIGHT ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

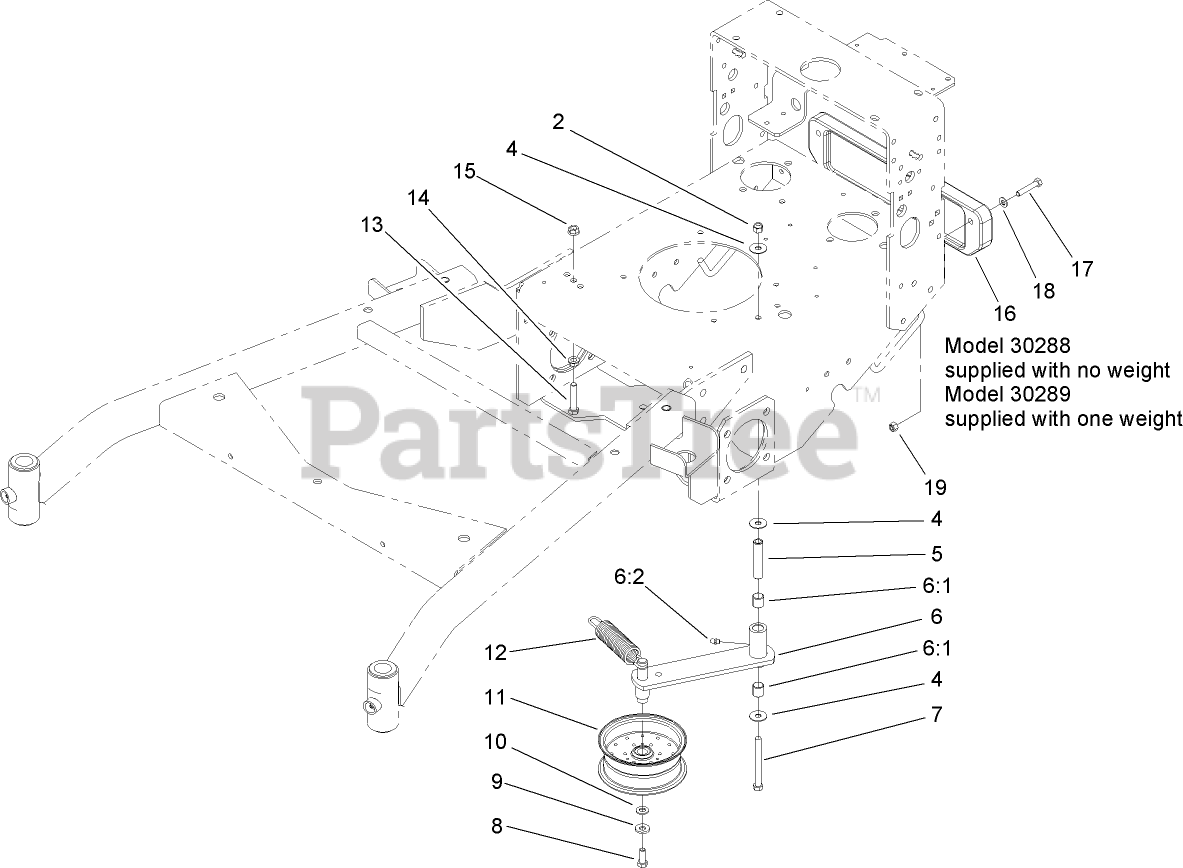

POWER-TAKE-OFF IDLER AND WEIGHT ASSEMBLY Parts Diagram

  • Title

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

4

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

5

Toro 104-6377

TUBE-IDLER

$20.99

$

Usually ships in 3-6 days

0

6

Toro 108-2734

IDLER ARM ASM

$209.99

$

Usually ships in 3-6 days

0

6:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

6:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

12

Toro 105-8443

SPRING-EXTENSION

$37.99

$

In Stock, only 1 left!

0

13

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 112-7059-01

WEIGHT-CAST

$240.99

$

Usually ships in 3-6 days

0

17

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
