30288 - Toro 48" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) FUEL SYSTEM, HYDRO PUMP AND FILTER ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

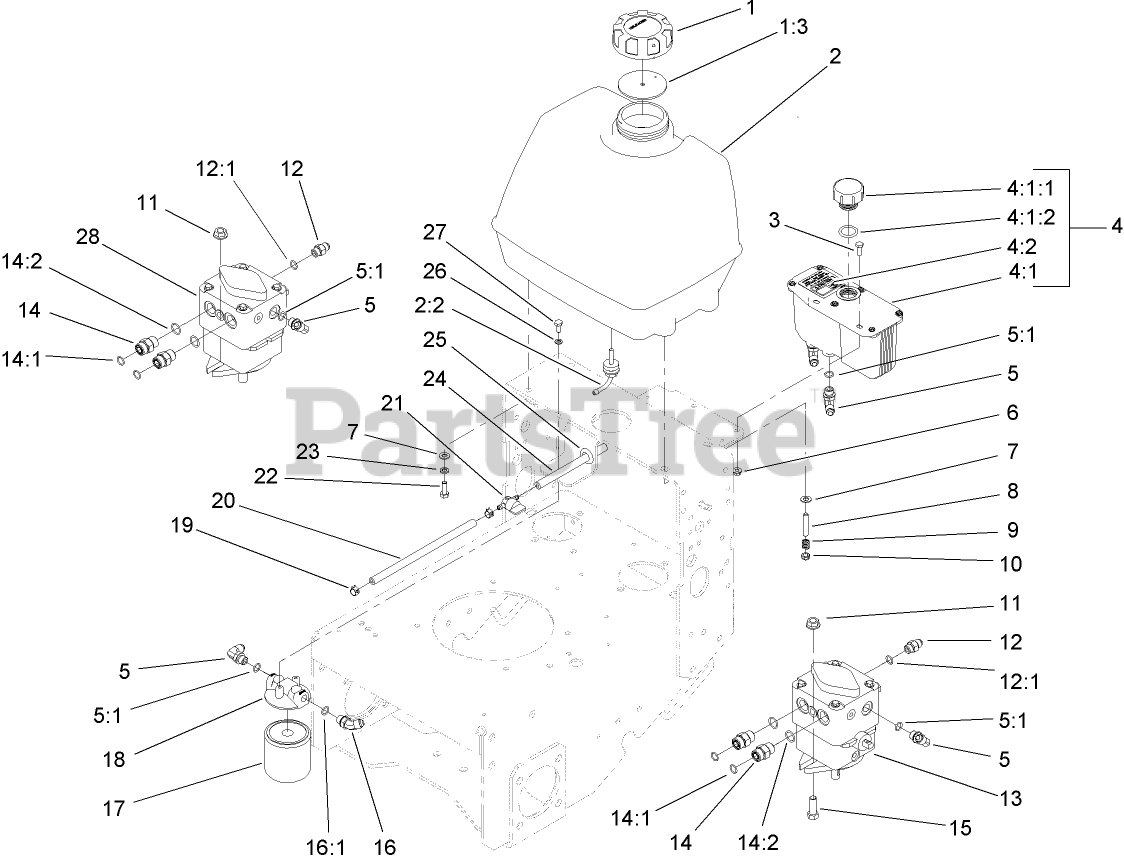

FUEL SYSTEM, HYDRO PUMP AND FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

2

Toro 106-0730

FUEL TANK ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 103-1947

HYD Reservoir ASM

$263.99

$

Usually ships in 3-6 days

0

4:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

4:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 2 left!

0

4:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

4:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

5

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

5:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

6

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 104-8121

STUD-THREADED

$18.99

$

Usually ships in 3-6 days

0

9

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 11

0

11

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

12

Toro 353-384

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13

Toro 109-4988

PUMP-HYD

$1200.99

$

In Stock, only 1 left!

0

14

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

14:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

15

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

17

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

17

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

18

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

19

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Toro 110-4894

HOSE-FUEL

$9.99

$

In Stock, only 1 left!

0

21

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 4 left!

0

25

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 112-8717

PUMP-HYD

$

$

Not available
