30286 - Toro 40" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-AS24 Parts Diagram

40" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

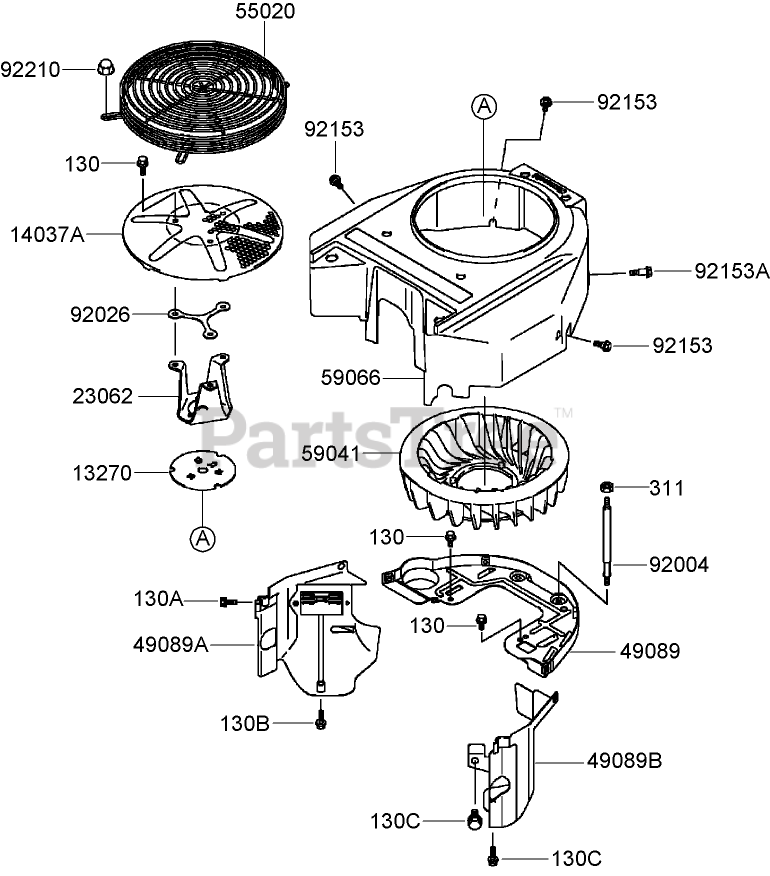

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-AS24 Parts Diagram

  • Title

13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

14037A

Kawasaki 14037-7020-9H

Screen
(Superseded to 14037-7010)

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

In Stock, Qty 12

0

23062

Kawasaki 23062-7010

Bracket
(Superseded to 23062-7008)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 5

0

49089

Kawasaki 49089-7032

Shroud-Engine
(Superseded to 49089-7003)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7042

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7043

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7004

Guard
(Superseded to 55020-7001)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, Qty 7

0

59041

Toro 59041-7010

Fan
(Superseded to 59041-7012)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59066

Toro 59066-7017

HOUSING-FAN

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7007

Spacer

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92210

Kawasaki 92210-0003

Nut

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
