30280 - Toro 60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) PUMP DRIVE AND WHEEL MOTOR ASSEMBLY Parts Diagram

60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

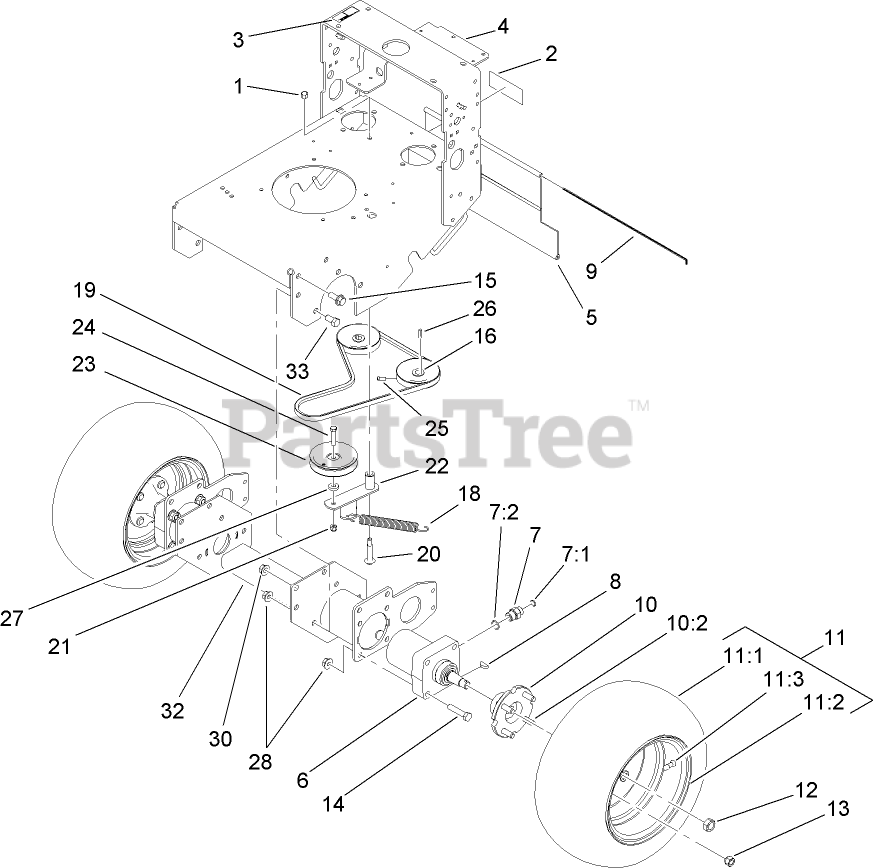

PUMP DRIVE AND WHEEL MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

3

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

4

Toro 112-9695-01

HYDRO FRAME ASM

$

$

Currently unavailable

5

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

6

Toro 112-8722

MOTOR-WHEEL

$

$

Not available

7

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

7:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

8

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

9

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

10

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

10:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

11

Toro 112-9973

WHEEL AND TIRE ASM

$

$

Not available

11:1

Toro 103-4320

TIRE
(Superseded to 95-2625)

$112.99

$

Usually ships in 3-6 days

0

11:2

Toro 105-1946

WHEEL

$339.99

$

Usually ships in 3-6 days

0

11:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

11:99

Toro 105-4070

Tube-Inner

Note: Optional Equipment

$40.99

$

Usually ships in 3-6 days

0

12

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

13

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

14

Toro 325-9

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

16

Toro 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

18

Toro 80-6610

SPRING-EXTENSION

$26.99

$

In Stock, only 2 left!

0

19

Toro 105-5649

V-BELT

$84.99

$

In Stock, only 4 left!

0

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

22

Toro 86-4770

IDLER LEVER ASM

$107.99

$

Usually ships in 3-6 days

0

23

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

26

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

27

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

28

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

30

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

32

Toro 112-9700-01

AXLE ASM
(Superseded to 112-9960-01)

$

$

Not available

33

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0
