30280 - Toro 60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH680V-DS22 Parts Diagram

60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

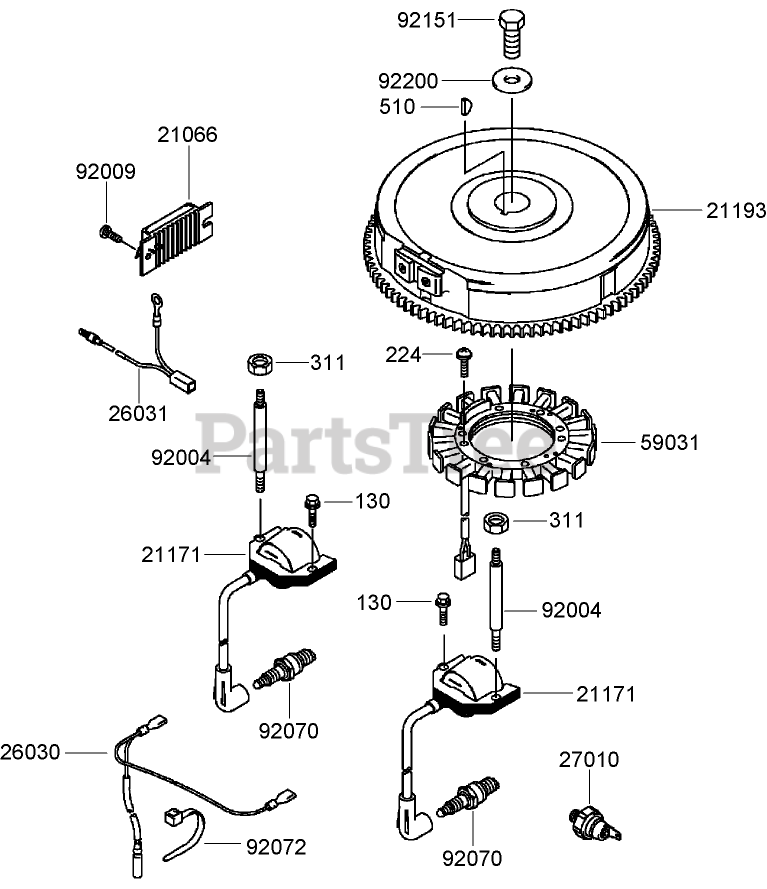

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH680V-DS22 Parts Diagram

  • Title

21066

Kawasaki 21066-7011

Regulator-Voltage
(Superseded to 21066-7001)

Note: Obtain parts from www.kawpowerepc.com

$77.99

$

In Stock, Qty 8

0

21171

Toro 21171-7013

IGNITION COIL ASM
(Superseded to 21171-7034)

Note: Obtain parts from www.kawpowerepc.com

$81.99

$

In Stock, Qty 6

0

21193

Toro 21193-7019

Flywheel ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

26030

Kawasaki 26030-7002

Harness

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 4 left!

0

26031

Kawasaki 26031-7003

HARNESS

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, only 1 left!

0

27010

Kawasaki 27010-7001

Switch
(Superseded to 27010-0817)

Note: Obtain parts from www.kawpowerepc.com

$23.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7009

COIL-CHARGING
(Superseded to 59031-7001)

Note: Obtain parts from www.kawpowerepc.com

$128.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 92004-7009

Stud
(Superseded to 92004-7026)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

SparkPlug (B P R4 E S (N G K) Solid)
(Superseded to BPR4ES)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 8

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 11

0
