30261 TE - Toro 91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp (SN: 240000001 - 240999999) (2004) FRAME AND FUEL TANK ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp

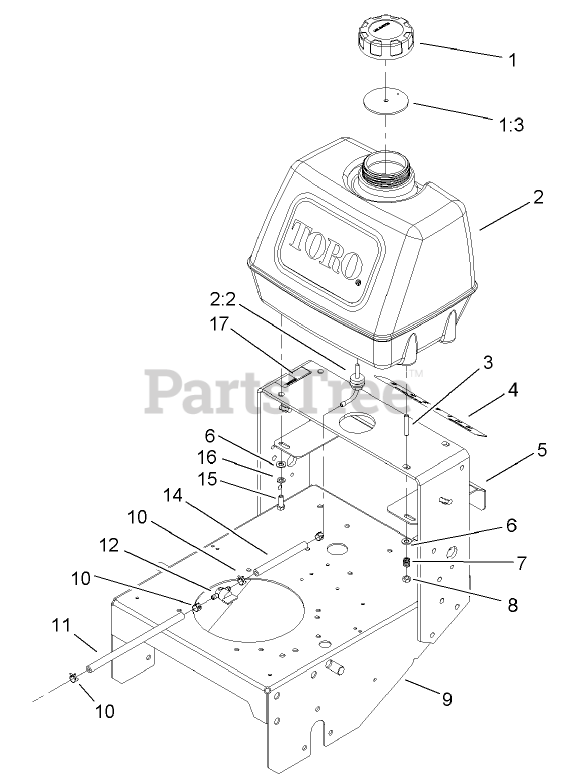

FRAME AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

2

Toro 106-0730

FUEL TANK ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

3

Toro 104-8121

STUD-THREADED

$18.99

$

Usually ships in 3-6 days

0

4

Toro 106-5495

DECAL-SPEED, GROUND

$

$

Not available

5

Toro 104-8102-01

PLATE-GATE, SHIFT

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

8

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

9

Toro 106-0546-01

GEAR FRAME ASM

$

$

Not available

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

12

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

14

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 93-9353

DECAL-SHUT OFF, FUEL

$

$

Not available
