30261 TE - Toro 91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp (SN: 240000001 - 240999999) (2004) CARRIER FRAME ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 12.5hp

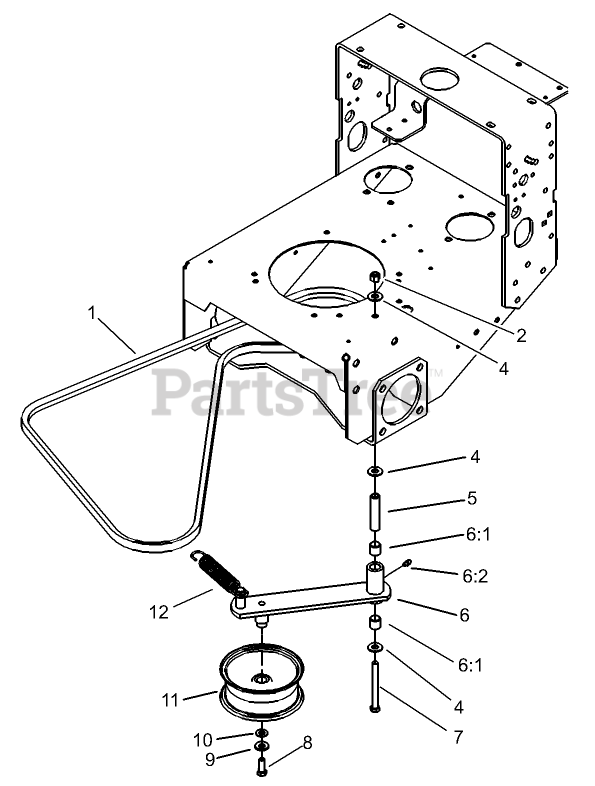

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5493

BELT-DRIVE, PTO

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

5

Toro 104-6377

TUBE-IDLER

$20.99

$

Usually ships in 3-6 days

0

6

Toro 106-0734

IDLER ARM ASM

$293.99

$

Usually ships in 3-6 days

0

6:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

6:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

12

Toro 105-8443

SPRING-EXTENSION

$37.99

$

In Stock, only 1 left!

0
