30259 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 210010001 - 210999999) (2001) ELECTRIC-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 17hp

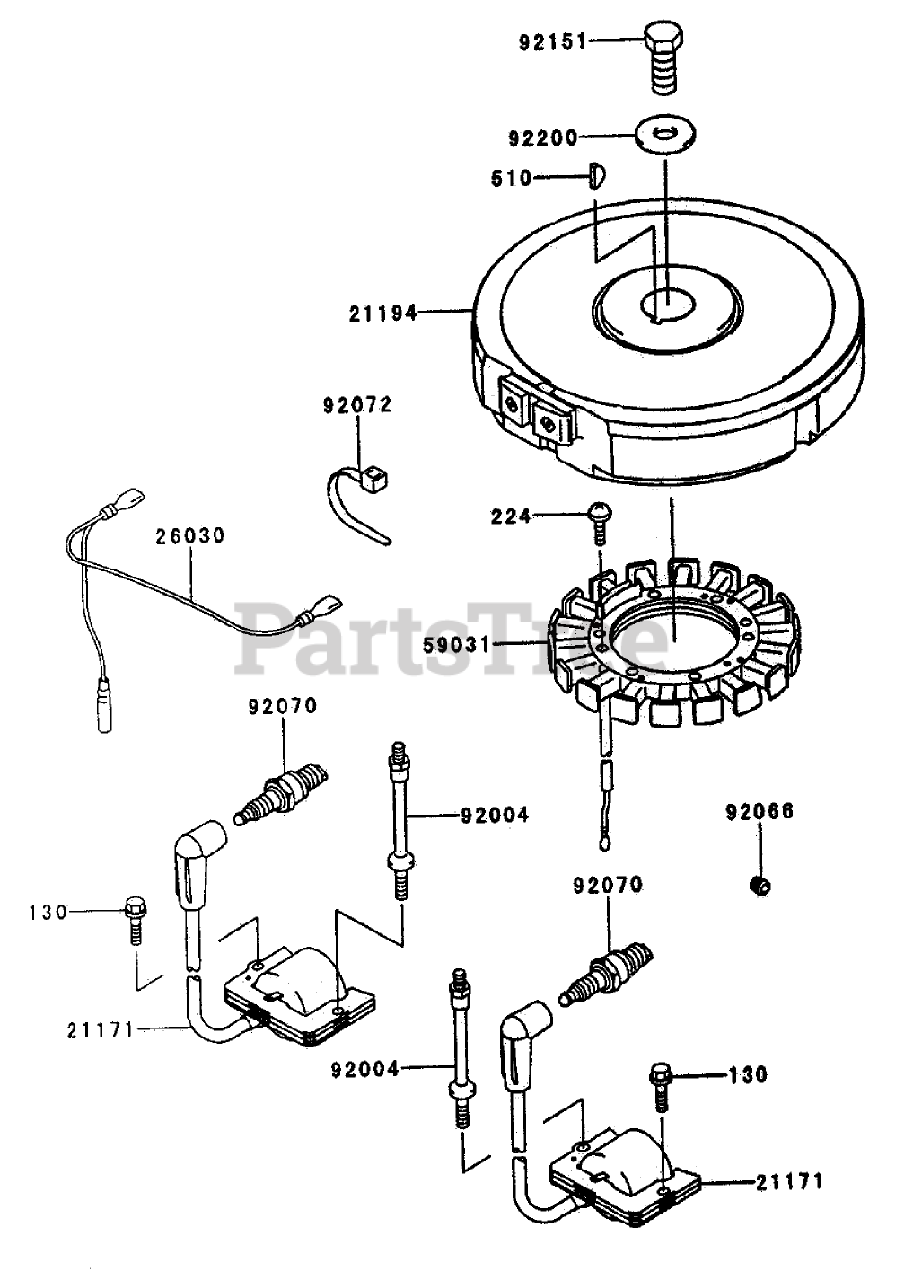

ELECTRIC-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

  • Title

21171

Toro 21171-7001

Ignition Coil ASM

$

$

Currently unavailable

21194

Toro 21193-7001

Flywheel-Assy

$

$

Currently unavailable

26030

Kawasaki 26030-7001

Harness

$10.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7002

Coil-Charging
(Superseded to 59031-7011)

$71.99

$

In Stock, only 3 left!

0

92004

Toro 92004-2147

Stud

$

$

Currently unavailable

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7001

Plug-Spark (RCJ8Y)
(Superseded to 92070-7003)

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7001

Band
(Superseded to 92072-7003)

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

$4.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 11

0

92220

Toro 92220-7002

Washer

$

$

Currently unavailable
