30258 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210005001 - 210999999) (2001) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 15hp

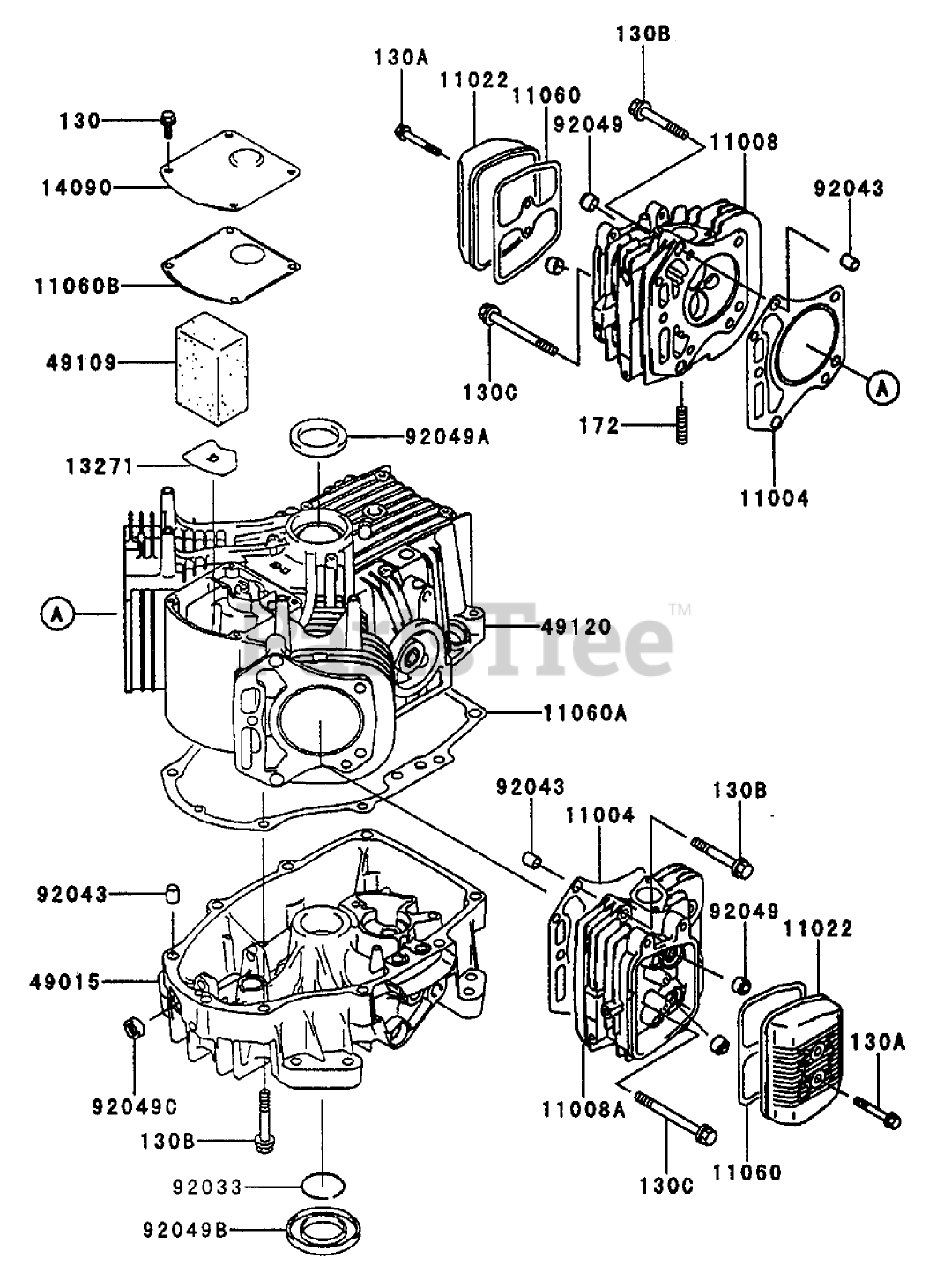

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

  • Title
11004

Kawasaki 11004-7005

Gasket-Head
(Superseded to 11004-7015)

$10.99

$

Usually ships in 2-5 days

0

11008

Toro 11008-7005

Head-Comp-Cylinder

$

$

Currently unavailable

11008A

Toro 11008-7006

Head-Comp-Cylinder

$

$

Currently unavailable

11022

Toro 11022-7003

Case-Rocker

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

$6.99

$

In Stock, Qty 20+

0

11060B

Toro 11060-7015

Gasket, Breather

$

$

Currently unavailable

14090

Toro 14090-7001

Cover, Breather

$

$

Currently unavailable

49015

Kawasaki 49015-6223

Cover-Crankcase
(Superseded to 49015-6254)

$

$

Not available

49109

Toro 49109-7002

Element-Breather

$

$

Currently unavailable

49120

Toro 49120-6119

Crankcase-Comp

$

$

Currently unavailable

92033

$0.99

$

In Stock, Qty 17

0

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

$

$

Currently unavailable

13271

$2.49

$

In Stock, only 3 left!

0
