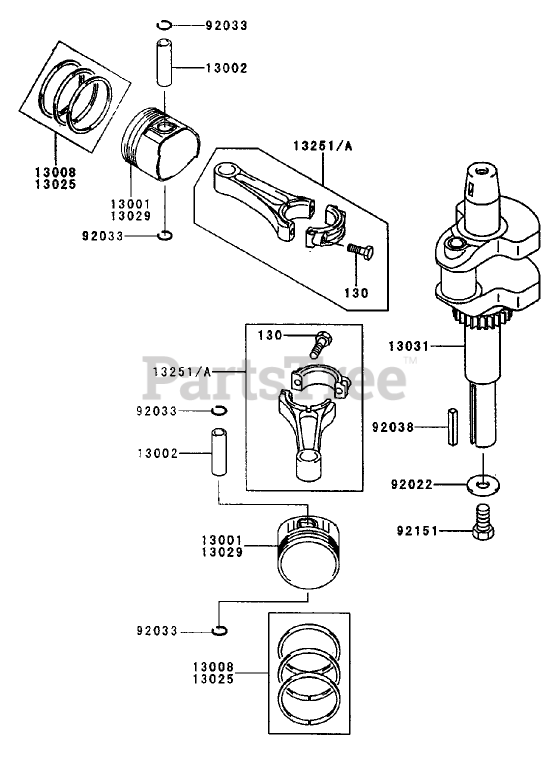

30258 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210005000) (2001) PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 15hp

PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH451V-AS08 Parts Diagram

  • Title

13001

Kawasaki 13001-7001

Piston-Engine
(Superseded to 13001-7008)

$74.99

$

In Stock, only 2 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

$4.99

$

In Stock, Qty 10

0

13008

Kawasaki 13008-6055

Ring-Set-Piston

$60.99

$

In Stock, Qty 14

0

13025

Kawasaki 13025-7001

Ring-Set-Piston L, 0.5

$39.99

$

Usually ships in 2-5 days

0

13029

Kawasaki 13029-7001

Piston-Engine L,0.50
(Superseded to 13029-7004)

$86.99

$

Usually ships in 2-5 days

0

13031

Kawasaki 13031-7001

Crankshaft-Comp

$

$

Not available

13251

Kawasaki 13251-7003

Rod-ASM-Connecting

$58.99

$

In Stock, only 3 left!

0

13251A

Kawasaki 13251-7004

Rod-ASM-Connecting
(Superseded to 13251-7001)

$58.99

$

In Stock, only 2 left!

0

92022

Kawasaki 92022-1982

Washer, 12.5 x 32 x

$5.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-7002

Ring-Snap
(Superseded to 92033-0725)

$0.99

$

In Stock, Qty 11

0

92038

Kawasaki 92038-2101

Key

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-7010

Bolt, 7/16-20 UNF

$1.49

$

In Stock, only 1 left!

0

130

Toro 130G0630

Bolt-Flanged (6X30)

$

$

Currently unavailable
