30257 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210005001 - 210999999) (2001) WHEEL DRIVE AND BRAKE SYSTEM ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

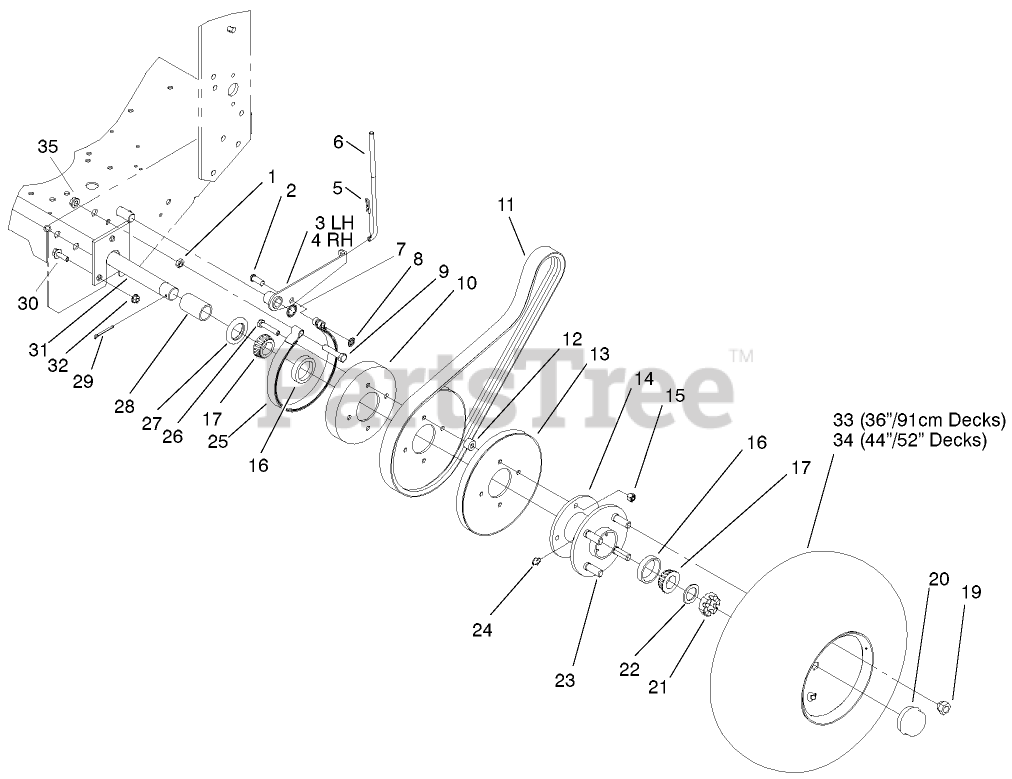

WHEEL DRIVE AND BRAKE SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

2

Toro 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 15

0

3

Toro 51-4610-01

ARM-BRAKE, LH
(Superseded to 106-5537-01)

$138.99

$

Usually ships in 3-6 days

0

4

Toro 51-4600-01

ARM-BRAKE, RH
(Superseded to 106-5537-01)

$138.99

$

Usually ships in 3-6 days

0

5

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Toro 51-4580

ROD-BRAKE

$59.99

$

Usually ships in 3-6 days

0

7

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

8

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.49

$

In Stock, Qty 5

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-323261

DRUM-BRAKE

$19.99

$

In Stock, Qty 7

0

11

Toro 104-8152

BELT-DRIVE, TRACTION

$140.99

$

In Stock, only 4 left!

0

12

Toro 51-4170

SPACER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

13

Toro 51-4160-03

PULLEY-WHEEL

$64.99

$

In Stock, only 2 left!

0

14

Toro 1-413333

HUB/WHEEL ASM

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

17

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

19

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

20

Toro 241-119

CAP-DUST

$13.99

$

In Stock, only 2 left!

0

21

Toro 1-809082

NUT-SHH

$14.99

$

In Stock, Qty 6

0

22

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

23

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

24

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

25

Toro 1-323262

BAND-BRAKE

$87.99

$

In Stock, only 4 left!

0

26

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

27

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

28

Toro 104-1197

SPACER-WHEEL

$18.99

$

Usually ships in 3-6 days

0

29

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 17

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

31

Toro 104-1196-01

AXLE ASM

$398.99

$

Usually ships in 3-6 days

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 104-1198

WHEEL AND TIRE ASM

$360.99

$

Usually ships in 3-6 days

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+
