30257 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210005000) (2001) LOWER CONTROLS ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

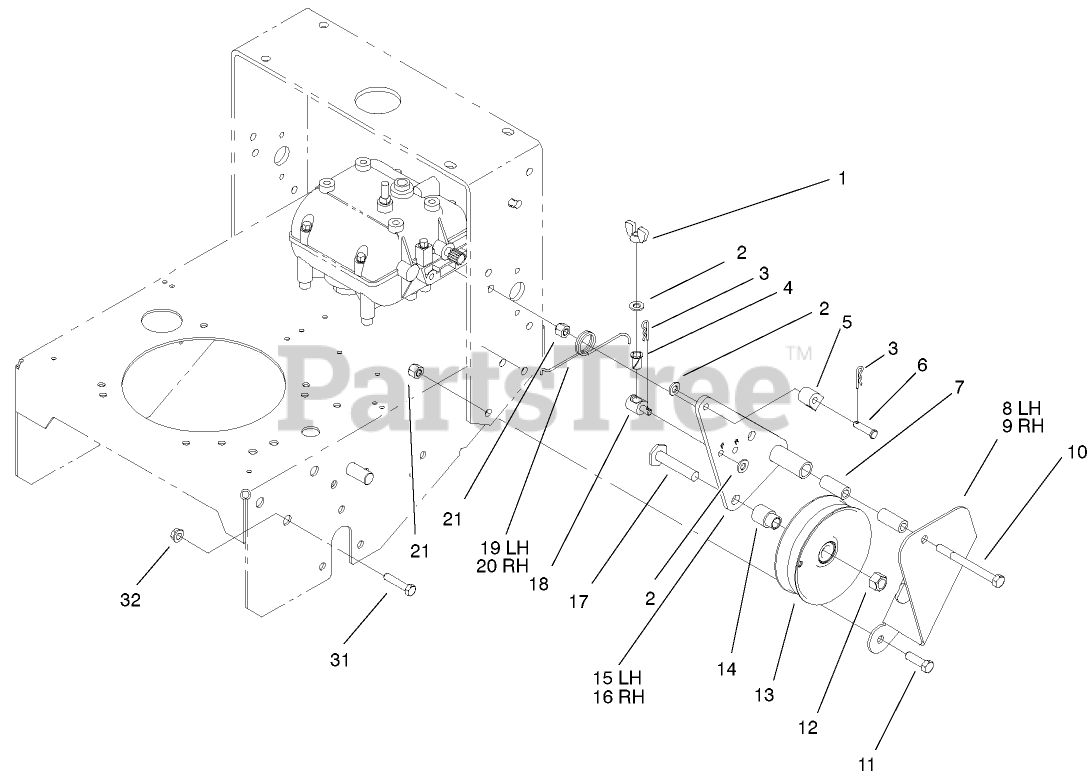

LOWER CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 32103-25

NUT-WING

$5.99

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

4

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

5

Toro 74-0521

FITTING-ROD

$15.99

$

Usually ships in 3-6 days

0

6

Toro 283-6

PIN-CLEVIS

$2.49

$

In Stock, Qty 11

0

7

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 67-6380-01

BRACKET-SUPPORT, LH

$134.99

$

Usually ships in 3-6 days

0

9

Toro 67-6370-01

BRACKET-SUPPORT, RH

$134.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 16

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-2800

PULLEY-IDLER

$46.99

$

Usually ships in 3-6 days

0

14

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

15

Toro 74-0220-01

BRACKET-IDLER, LH

$

$

Not available

16

Toro 74-0230-01

BRACKET-IDLER, RH

$

$

Not available

17

Toro 51-4450

SCREW-LEVELER

$14.99

$

Usually ships in 3-6 days

0

18

Toro 68-9690

FITTING-ROD

$60.99

$

Usually ships in 3-6 days

0

19

Toro 51-4380

SPRING-TORSION, LH

$18.99

$

In Stock, only 3 left!

0

20

Toro 51-4370

SPRING-TORSION, RH

$18.99

$

In Stock, only 3 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

32

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 14

0
