30255 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) AIR CLEANER ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 15hp

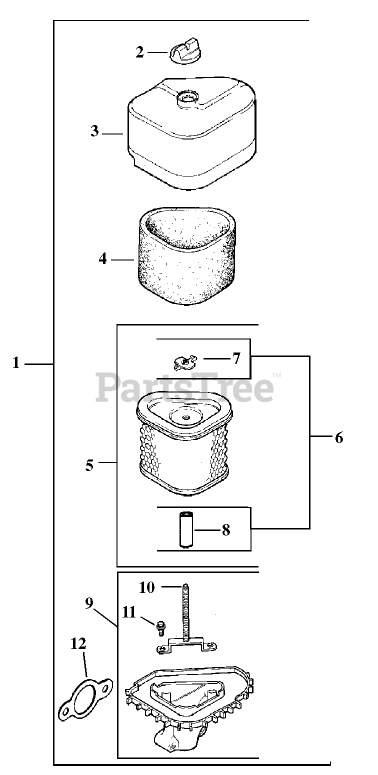

AIR CLEANER ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

  • Title

1

1274302-S

Kit-Air Cleaner (Incl. 2-12)

Note: Order Parts from Kohler

$

$

Not available

2

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Order Parts from Kohler

$7.99

$

Usually ships in 2-5 days

0

3

1209638-S

Cover-Air Cleaner

Note: Order Parts from Kohler

$

$

Not available

4

Kohler 12 083 12-S

Element-Precleaner

Note: Order Parts from Kohler

$6.99

$

In Stock, Qty 10

0

5

Kohler 12 083 10-S

Element-Air Cleaner (Incl. 6-8)

Note: Order Parts from Kohler

$19.99

$

In Stock, Qty 10

0

6

Kohler 12 743 12-S

Kit-Seal (Incl. 7-8)

Note: Order Parts from Kohler

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 100 08-S

Nut-Wing

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 032 11-S

Seal

Note: Order Parts from Kohler

$2.99

$

In Stock, only 1 left!

0

9

Kohler 12 094 07-S

Base-Air Cleaner (Incl. 10, 11)

Note: Order Parts from Kohler

$62.99

$

Usually ships in 2-5 days

0

10

Kohler 12 072 04-S

Stud

Note: Order Parts from Kohler

$10.99

$

In Stock, Qty 5

0

11

Kohler 12 086 01-S

Screw

Note: Order Parts from Kohler

$4.49

$

In Stock, Qty 6

0

12

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Order Parts from Kohler

$2.99

$

In Stock, Qty 5

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
