30254 - Toro 44" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210010001 - 210999999) (2001) SPINDLE, IDLER PULLEY AND BELT ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Gear Drive, 15hp

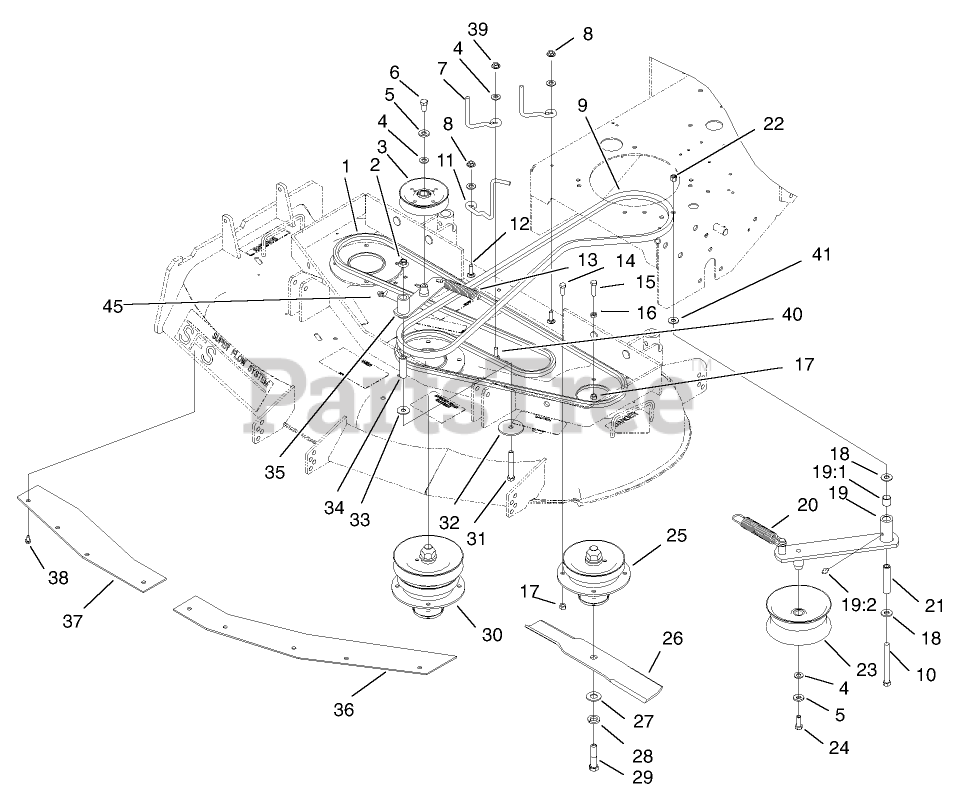

SPINDLE, IDLER PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

2

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

7

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

8

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 104-8120

V-BELT, PTO

$111.99

$

In Stock, only 1 left!

0

10

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

11

Toro 105-0852

GUIDE-BELT

$

$

Not available

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

13

Toro 54-2730-03

SPRING-EXTENSION
(Superseded to 54-2730)

$22.99

$

In Stock, only 2 left!

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

19

Toro 104-6370

IDLER ARM ASM

$

$

Not available

19:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

19:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 104-8161

SPRING-EXTENSION
(Superseded to 105-8443)

$37.99

$

In Stock, only 1 left!

0

21

Toro 104-6377

TUBE-IDLER

$20.99

$

Usually ships in 3-6 days

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 104-6316

SPINDLE HOUSING ASM
(Superseded to 106-0803)

$650.99

$

Usually ships in 3-6 days

0

26

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

27

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

28

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

30

Toro 104-6314

SPINDLE HOUSING ASM
(Superseded to 106-0801)

$

$

Not available

31

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

32

Toro 20-9530

WASHER-END

$37.99

$

Usually ships in 3-6 days

0

33

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

34

Toro 104-8113

TUBE-IDLER

$23.99

$

Usually ships in 3-6 days

0

35

Toro 104-8110

IDLER ARM ASM

$

$

Not available

36

Toro 100-3258-03

PLATE-BLOWOUT, LH

$162.99

$

Usually ships in 3-6 days

0

37

Toro 100-3257-03

PLATE-BLOWOUT, RH

$162.99

$

Usually ships in 3-6 days

0

38

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

39

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

40

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

41

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0
