30254 EG - Homelite Expert Gardner Electric Pole Saw General Assembly Parts Diagram

Expert Gardner Electric Pole Saw

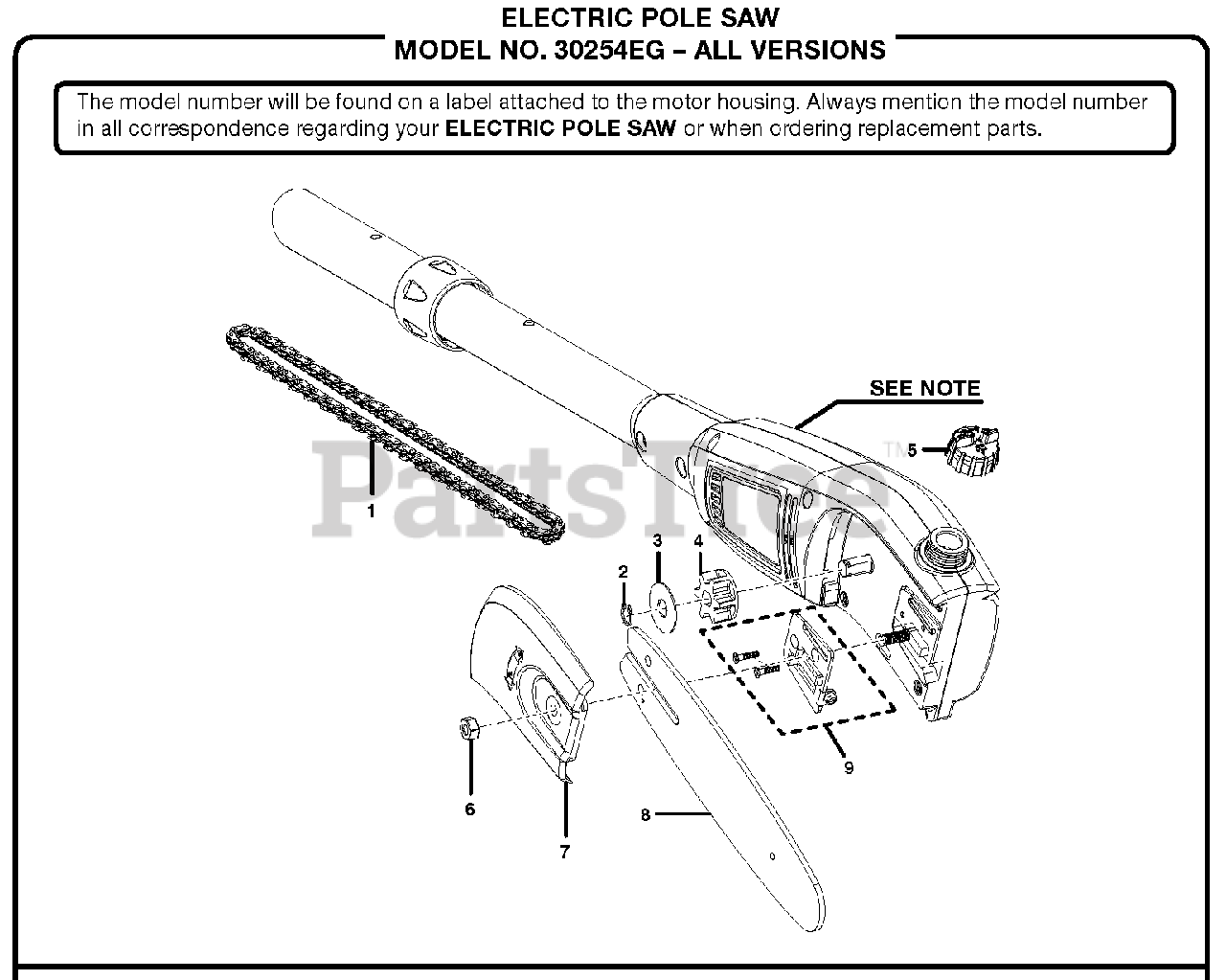

General Assembly Parts Diagram

  • Title

$16.99

$

In Stock, only 1 left!

0

2

Homelite 3290875G

Retaining Ring

$

$

Not available

$1.49

$

In Stock, only 2 left!

0

4

Homelite 33902102-1G

Sprocket
(Superseded to 33902102-2G)

$

$

Not available

$

$

Currently unavailable

6

Homelite 32901152G

Hex Nut (M6)

$

$

Not available

7

Homelite 31308152G

Chain Cover Assembly

$

$

Not available

$

$

Currently unavailable

9

Homelite 31307152G

Chain Adjustment Assembly

$

$

Not available

Homelite 34161152G

Scabbard

Note: Not Shown

$

$

Not available

Homelite 98800773

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
