30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 220000001 - 220999999) (2002) FUEL SYSTEM (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

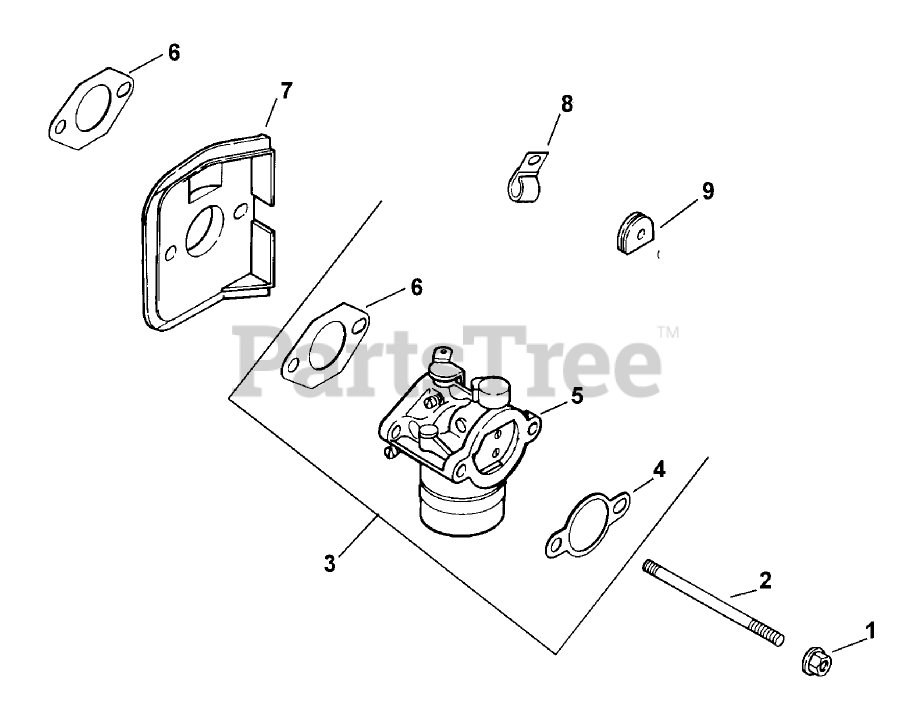

FUEL SYSTEM (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

2

Kohler M-0629122

Stud
(Superseded to M-629122)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

3

1285378

Kit-Carburetor w/Gaskets

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1204102

Gasket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1205378

Carburetor ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1204101

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1226504

Deflector-Heat

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0

9

1231301

Grommet

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275702

Kit-Float

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275702

Kit-Float

Note: Not illustrated

$

$

Not available

1275708

Kit-Choke Repair

Note: Not illustrated

$

$

Not available

1275708

Kit-Choke Repair

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
