30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 220000001 - 220999999) (2002) BLOWER HOUSING AND BAFFLES (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

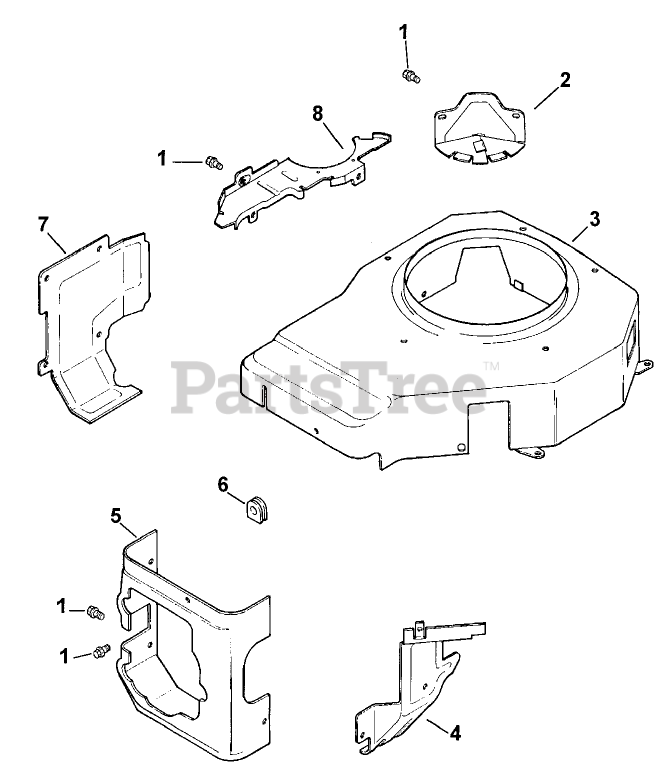

BLOWER HOUSING AND BAFFLES (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

2

1209629

Cover-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1202737

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1206305

Baffle-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1206308

Baffle-Cyl. Head

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1231303

Grommet-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1206301

Baffle-Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1214607

Plate-Blower Housing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213366

Decal-Horsepower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213366

Decal-Horsepower

Note: Not illustrated

$

$

Not available
