30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) SPINDLE ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

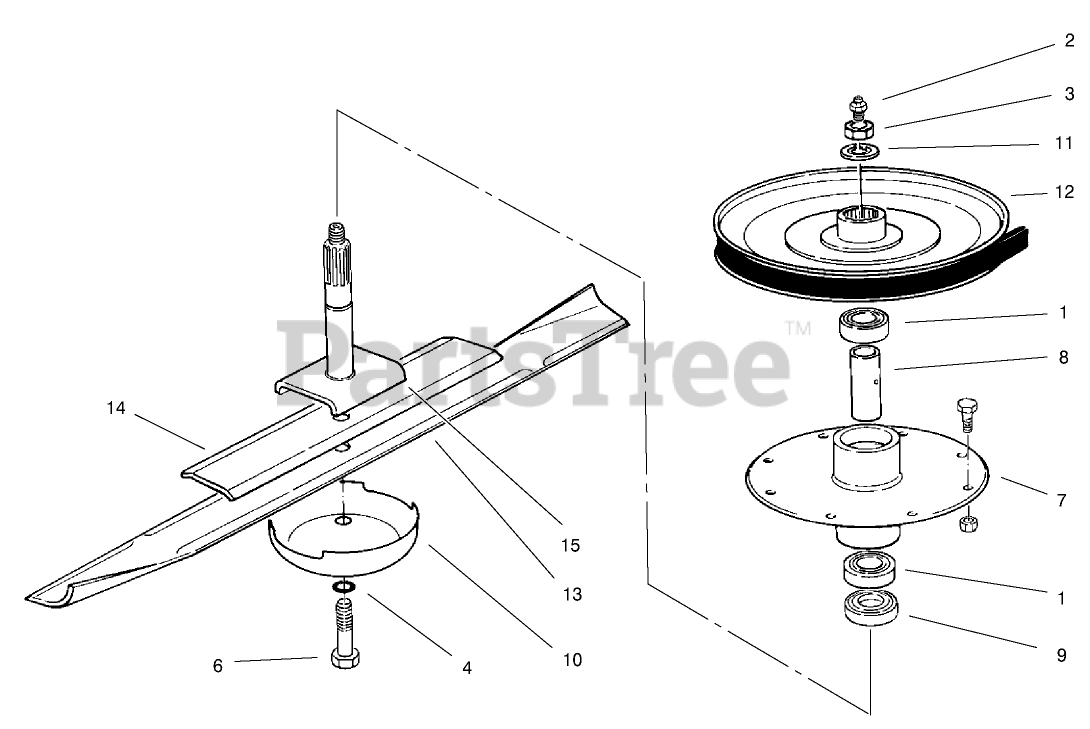

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

3

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

4

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

6

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

7

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$570.99

$

Usually ships in 3-6 days

0

8

Toro 67-6070

SPACER-BEARING

$56.99

$

Usually ships in 3-6 days

0

9

Toro 67-6080

SPACER

$102.99

$

Usually ships in 3-6 days

0

10

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

11

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

12

Toro 74-0580

PULLEY ASM

$289.99

$

Usually ships in 3-6 days

0

13

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, only 1 left!

0

14

Toro 82-4750

Decal-Danger
(Superseded to 82-4750-03)

$77.99

$

Usually ships in 3-6 days

0

15

Toro 92-5763

SHAFT-SPINDLE

$329.99

$

Usually ships in 3-6 days

0
