30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) DECK ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

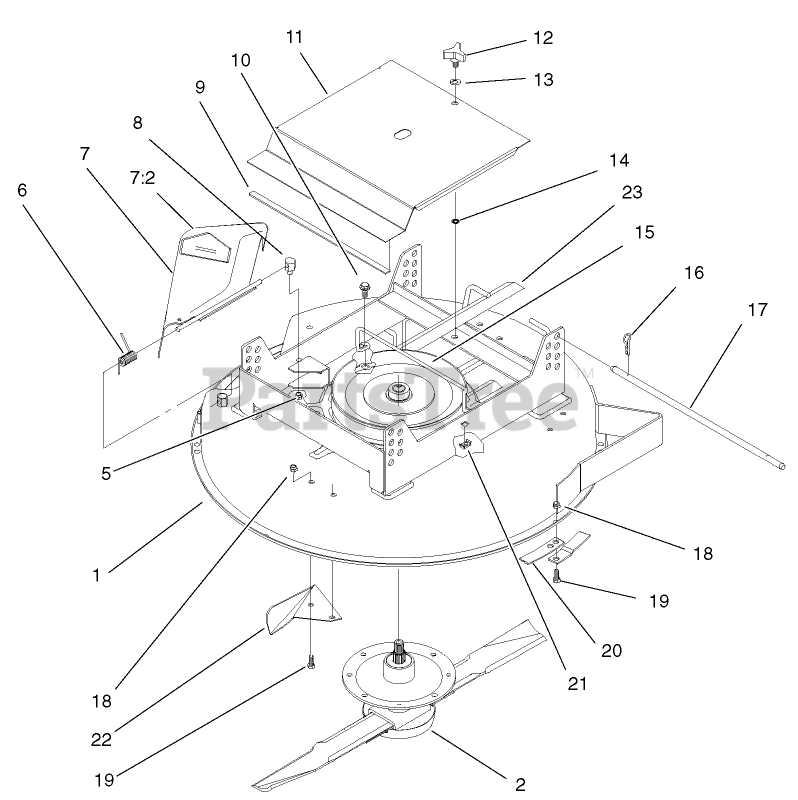

DECK ASSEMBLY Parts Diagram

  • Title

1

Deck

Note: Not serviced

$

$

Not available

2

Spindle ASM

Note: Not serviced

$

$

Not available

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

6

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

7

Toro 44-5930

DEFLECTOR ASM

$191.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

9

Toro 67-6180

STRIP-MAGNETIC

$

$

Not available

10

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

11

Toro 67-6160-01

Cover

$

$

Not available

12

Toro 62-6520

KNOB

$8.49

$

In Stock, only 1 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

15

Toro 74-0570

GUIDE-BELT

$77.99

$

Usually ships in 3-6 days

0

16

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

17

Toro 67-6140

ROD-SUPPORT

$

$

Not available

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 92-5419-03

RING-RECYCLER

$25.99

$

Usually ships in 3-6 days

0

21

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

22

Toro 80-2630-03

KICKER

$33.99

$

In Stock, only 4 left!

0

23

Toro 67-6920

V-BELT

$67.99

$

Usually ships in 3-6 days

0
