30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

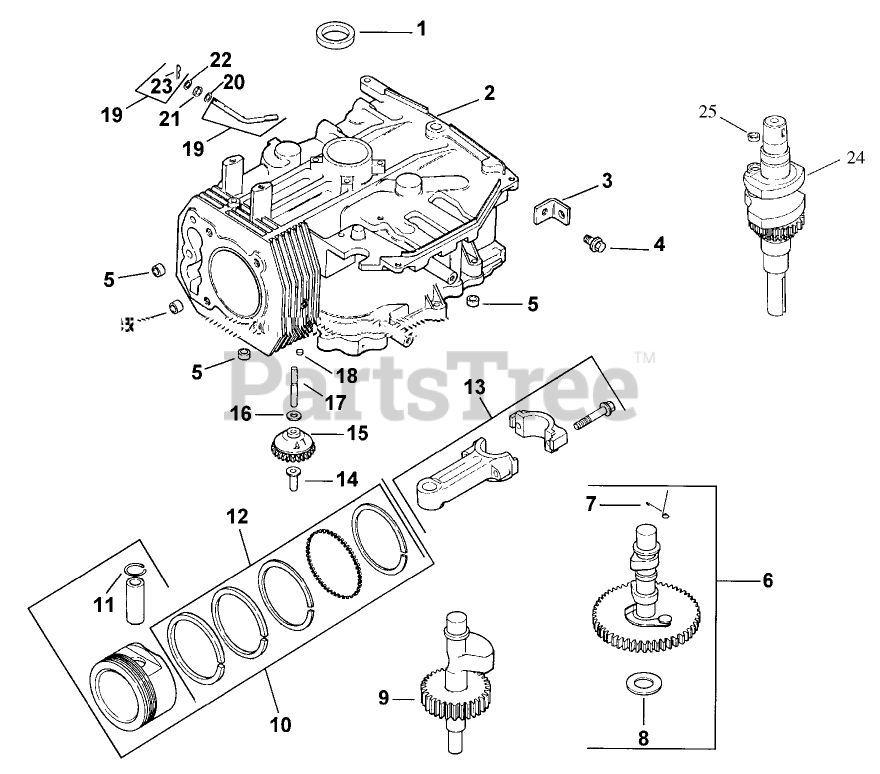

CRANKCASE ASSEMBLY (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

1203203

Seal-Crankshaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 12 522 33

Shortblock
(Superseded to 12 522 21)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1244502

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0839025

Screw
(Superseded to M-839025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

5

1238017

Dowel-Locating

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1275549

Camshaft Assembly

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1208931

Spring-Actuating

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

9

1214427

Shaft-Balance

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1284701

Set Piston w/Ring STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1284702

Set-Piston w/Ring .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1284703

Set-Piston w/Ring .50

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

1201802

Retainer-Piston Pin

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1210801

Ring Set STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1210802

Ring Set .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1210803

Ring Set .50

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1206705

Rod Connecting STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1206706

Rod Connecting .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 10

0

15

1204305

Gear, governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

17

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

19

1275564

Kit-Shaft-Governor Cross (Incl. Ref.#23)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

21

1203201

Seal-Cross Shaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

22

Kohler M-0631015

Washer, plain 6 mm
(Superseded to M-631015)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

23

1215405

Clip-Hitch Pin

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

24

1201430

Crankshaft ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

25

1213901

Plug-Cup

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1203002

Bearing-Crankshaft 0.25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1203002

Bearing-Crankshaft 0.25

Note: Not illustrated

$

$

Not available

1203003

Bearing-Crankshaft 0.50

Note: Not illustrated

$

$

Not available

1203003

Bearing-Crankshaft 0.50

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275583

Set-Gasket

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1275583

Set-Gasket

Note: Not illustrated

$

$

Not available
