30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) AIR CLEANER ASSEMBLY (KOHLER CV13T-PS-21524) Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

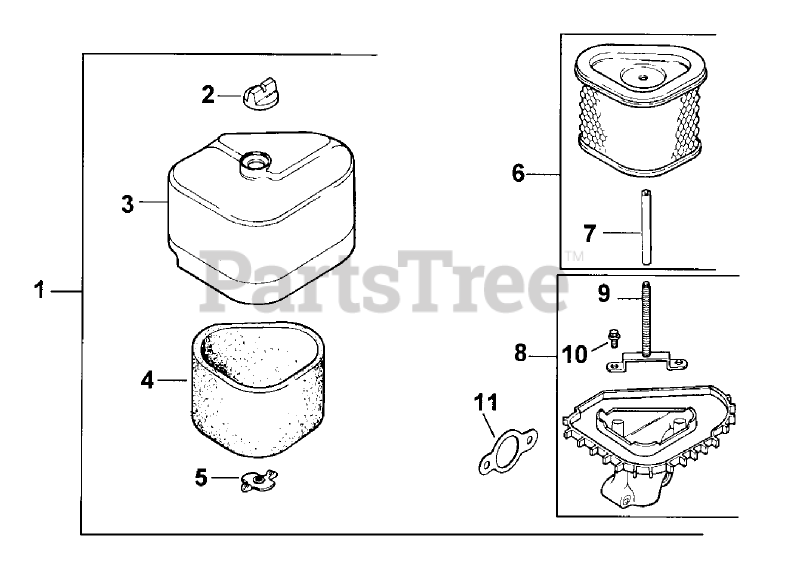

AIR CLEANER ASSEMBLY (KOHLER CV13T-PS-21524) Parts Diagram

  • Title

1

1273402

Kit-Air Cleaner (Incl. Ref. #2-11)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

2534103

Knob-Cover

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1209616

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1208312

Precleaner-Element

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

6

1208310

Element-Air Cleaner (Incl. Ref.#7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1203211

Seal

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1209407

Base-Air Cleaner (Incl. Ref. #9, 10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1207204

Stud-Mounting Plate

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1208601

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

1204102

Gasket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
