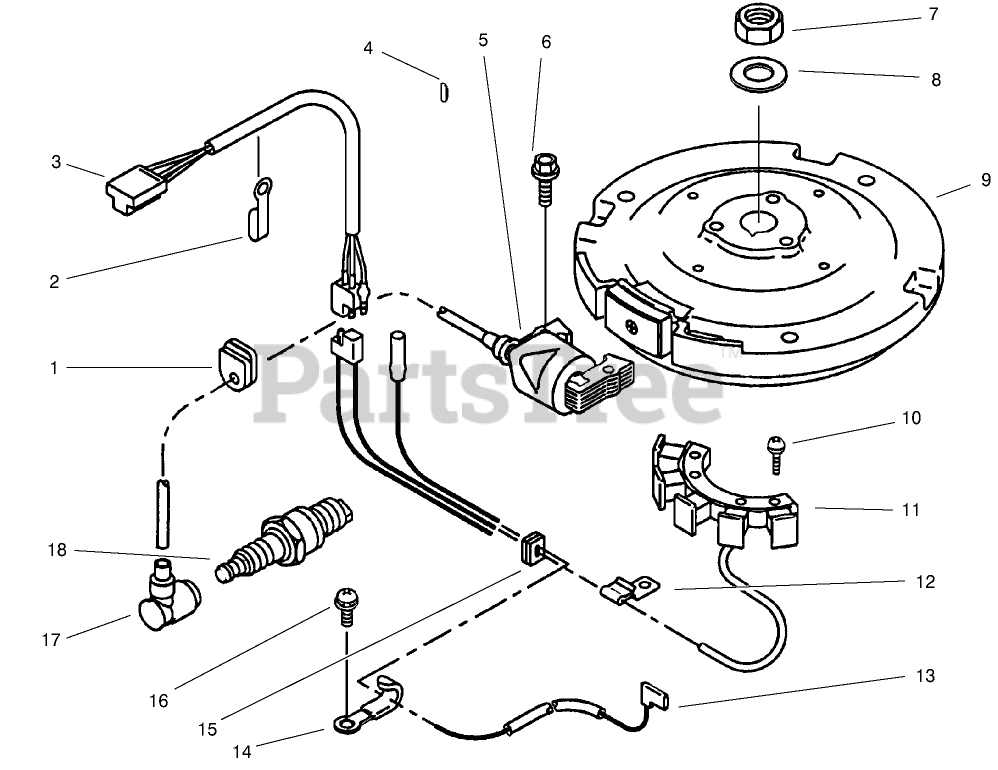

30250 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210005000) (2001) ELECTRIC EQUIPMENT ASSEMBLY-KAWASAKI MODEL FB460V-AS38 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

ELECTRIC EQUIPMENT ASSEMBLY-KAWASAKI MODEL FB460V-AS38 Parts Diagram

  • Title

1

Kawasaki 92071-2100

Grommet

Note: Order Parts from Kawasaki

$1.99

$

In Stock, only 1 left!

0

2

Kawasaki 92037-2063

Clamp

Note: Order Parts from Kawasaki

$0.99

$

Usually ships in 2-5 days

0

3

Kawasaki 26001-2113

Harness

Note: Order Parts from Kawasaki

$

$

Not available

4

Kawasaki 92038-2094

Key

Note: Order Parts from Kawasaki

$2.49

$

In Stock, only 2 left!

0

5

Kawasaki 21121-2086

Coil-Ignition

Note: Order Parts from Kawasaki

$108.99

$

In Stock, only 1 left!

0

6

Toro 130b0520

Bolt-Flange

Note: Order Parts from Kawasaki

$

$

Currently unavailable

7

Kawasaki 314G1800

Nut

Note: Order Parts from Kawasaki

$2.49

$

In Stock, only 2 left!

0

8

Kawasaki 92022-2178

Washer

Note: Order Parts from Kawasaki

$2.99

$

Usually ships in 2-5 days

0

9

Toro 21194-2323

Flywheel

Note: Order Parts from Kawasaki

$

$

Currently unavailable

10

Toro 224b0620

Screw

Note: Order Parts from Kawasaki

$

$

Currently unavailable

11

Toro 59031-2106

Coil-Charging

Note: Order Parts from Kawasaki

$

$

Currently unavailable

12

Toro 92037-2158

Clamp

Note: Order Parts from Kawasaki

$

$

Currently unavailable

13

Kawasaki 26011-2329

Wire-Lead
(Superseded to 26011-2312)

Note: Order Parts from Kawasaki

$3.99

$

Usually ships in 2-5 days

0

14

Kawasaki 92170-2029

Clamp

Note: Order Parts from Kawasaki

$6.49

$

Usually ships in 2-5 days

0

15

Kawasaki 92071-2099

Grommet

Note: Order Parts from Kawasaki

$

$

Not available

16

Toro 234b0408

Screw

Note: Order Parts from Kawasaki

$

$

Currently unavailable

17

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

Note: Order Parts from Kawasaki

$14.99

$

In Stock, Qty 8

0

18

Toro 92070-2101

Spark Plug-Rcj8

Note: Order Parts from Kawasaki

$

$

Currently unavailable
