30250 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210005000) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

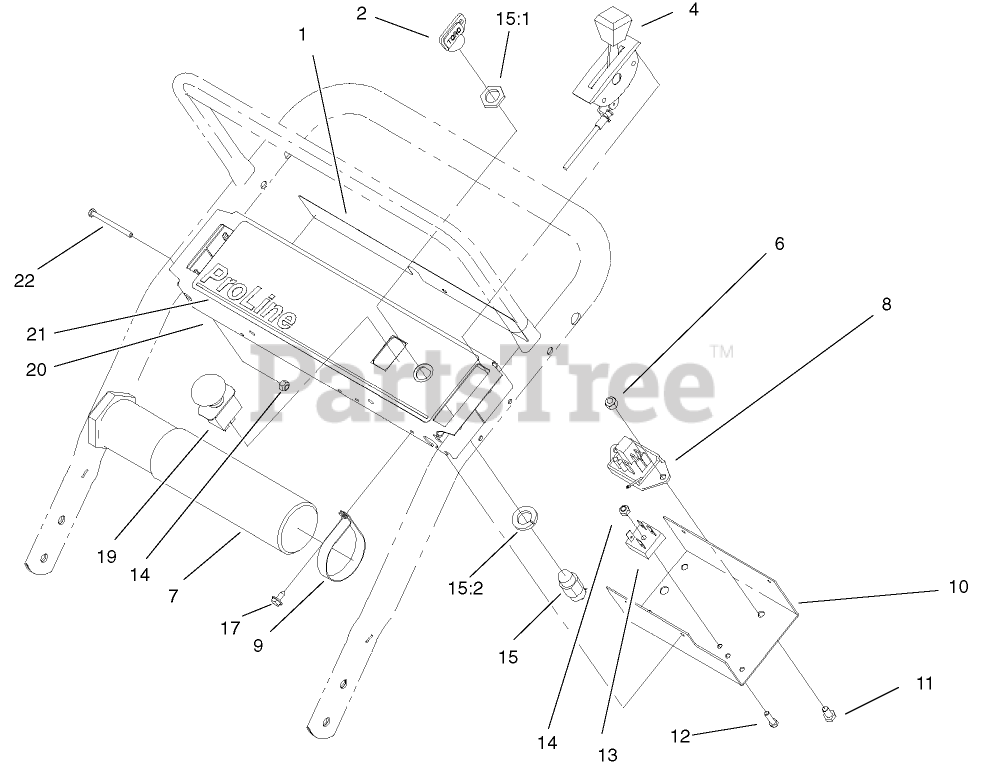

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0884

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 74-0740

CONTROL-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

8

Toro 104-8141

MODULE-DELAY

$65.99

$

In Stock, Qty 8

0

9

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

10

Toro 93-1187-03

PANEL-BOTTOM

$48.99

$

Usually ships in 3-6 days

0

11

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

13

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 1 left!

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

15:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

15:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-8140

SWITCH-PTO

$77.99

$

In Stock, only 1 left!

0

20

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

21

Toro 104-8180

DECAL-PANEL, CONTROL

$57.99

$

Usually ships in 3-6 days

0

22

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0
