30250 TE - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210005001 - 210999999) (2001) VALVES AND CAMSHAFT ASSEMBLY-KAWASAKI MODEL FB460V-LS08 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

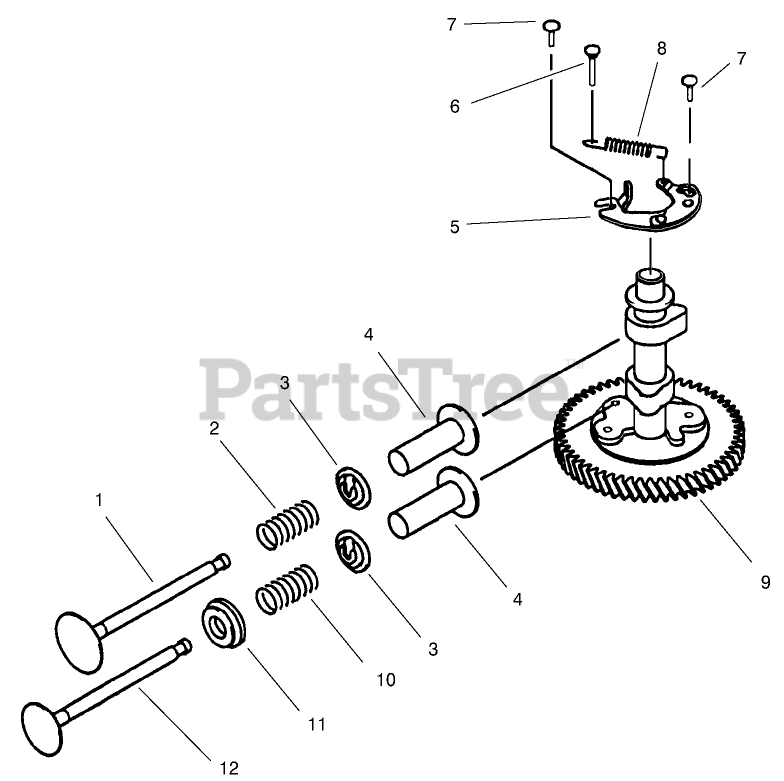

VALVES AND CAMSHAFT ASSEMBLY-KAWASAKI MODEL FB460V-LS08 Parts Diagram

  • Title

1

Kawasaki 12004-2076

Intake Valve
(Superseded to 12004-2072)

Note: Order Parts from Kawasaki

$28.99

$

In Stock, only 1 left!

0

2

Kawasaki 49078-2059

Spring-Valve
(Superseded to 49078-2075)

Note: Order Parts from Kawasaki

$

$

Not available

3

Kawasaki 39108-2054

Retainer-Spring

Note: Order Parts from Kawasaki

$

$

Not available

4

Kawasaki 12032-2058

Tappet

Note: Order Parts from Kawasaki

$

$

Not available

5

Toro 21118-2068

Decompressor

Note: Order Parts from Kawasaki

$

$

Currently unavailable

6

Kawasaki 92043-2167

Pin

Note: Order Parts from Kawasaki

$0.99

$

In Stock, only 4 left!

0

7

Kawasaki 92043-2113

Pin

Note: Order Parts from Kawasaki

$1.99

$

Usually ships in 2-5 days

0

8

Kawasaki 92144-2171

Spring

Note: Order Parts from Kawasaki

$

$

Not available

9

Kawasaki 49118-2134

Camshaft Incl # 5-8
(Superseded to 49118-2064)

Note: Order Parts from Kawasaki

$133.99

$

Usually ships in 2-5 days

0

10

Kawasaki 49078-2058

Spring-Valve
(Superseded to 49078-2074)

Note: Order Parts from Kawasaki

$

$

Not available

11

Kawasaki 12039-2052

Rotator

Note: Order Parts from Kawasaki

$

$

Not available

12

Kawasaki 12005-2066

Exhaust Valve
(Superseded to 12005-2065)

Note: Order Parts from Kawasaki

$

$

Not available
