30250 TE - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210005001 - 210999999) (2001) ENGINE, CLUTCH ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

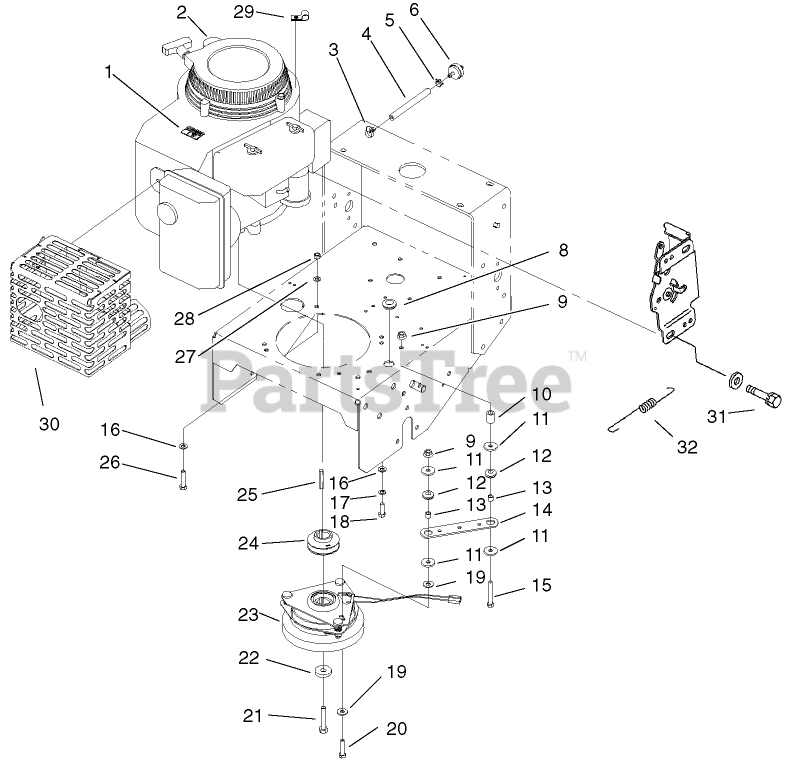

ENGINE, CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

2

Toro 100-6466

ENGINE-12.5 KAWASAKI

$

$

Not available

3

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

4

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

5

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

6

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

7

Toro 104-8135

WIRE HARNESS

Note: Not illustrated

$

$

Not available

8

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

11

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

13

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

14

Toro 1-633543

STRAP-CLUTCH/BRAKE

$

$

Not available

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

22

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

23

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

24

Toro 105-0827

PULLEY-DRIVE
(Superseded to 107-4112)

$137.99

$

Usually ships in 3-6 days

0

25

$

$

Not available

26

Toro 57-6370

SCREW (ENGINE, GROUND)

$

$

Not available

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

28

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 105-0857-03

MUFFLER GUARD ASM

$

$

Not available

31

Toro 105-2681

Screw-Governor Plate

$

$

Not available

32

Toro 105-2679

Spring-Governor

$24.99

$

Usually ships in 3-6 days

0
