30250 TE - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210005000) (2001) SPINDLE HOUSING ASSEMBLY NO. 104-6319 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

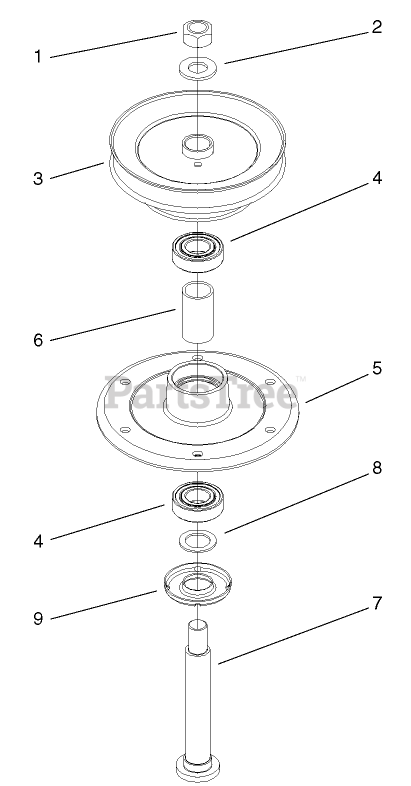

SPINDLE HOUSING ASSEMBLY NO. 104-6319 Parts Diagram

  • Title

1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-1180

PULLEY AND HUB ASM

$246.99

$

Usually ships in 3-6 days

0

4

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 20+

0

5

Toro 104-6307

HOUSING-SPINDLE

$324.99

$

Usually ships in 3-6 days

0

6

Toro 104-6313

SPACER-BEARING
(Superseded to 106-0795)

$29.99

$

In Stock, only 1 left!

0

7

Toro 104-6311

SHAFT-SPINDLE
(Superseded to 106-0798)

$289.99

$

Usually ships in 3-6 days

0

8

Toro 88-7540

WASHER-BACKUP

$1.99

$

In Stock, Qty 5

0

9

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0
