30242 R - Troy-Bilt 42" Blade Attachment (SN: 0100101 - 0199999) 42" BLADE ATTACHMENT Parts Diagram

42" Blade Attachment

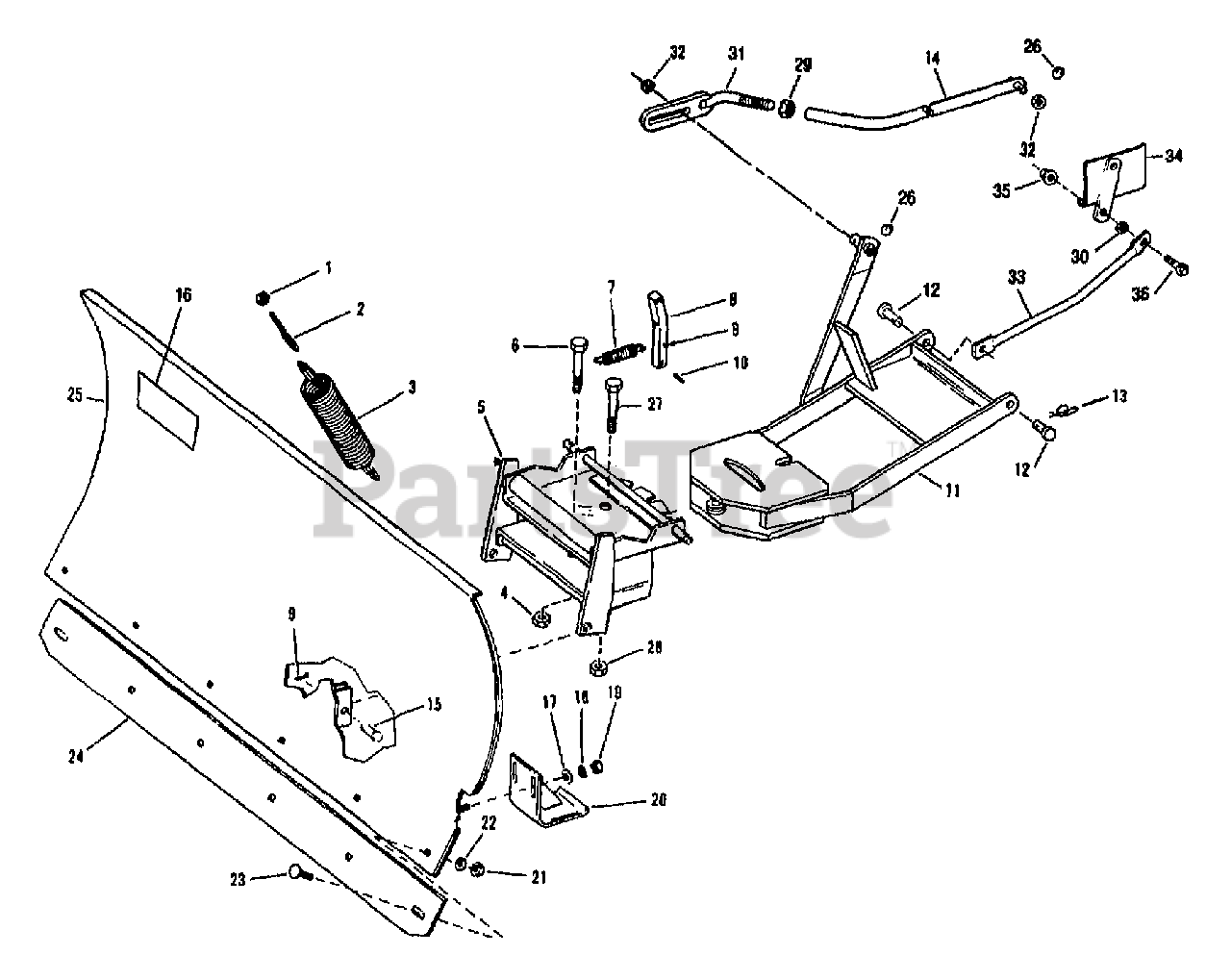

42" BLADE ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

2

MTD 1713077

BOLT-EYE 5/16-18X2.75 ZP

$

$

Not available

3

Troy-Bilt 1714844GAR

SPRING-EXT

$

$

Currently unavailable

4

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

5

Troy-Bilt 1731053GAR

ASSM-PIVOT PLATE

$

$

Currently unavailable

6

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

7

MTD 1700401

SPRING

$

$

Not available

8

MTD 1714830

PIN-LATCH

$

$

Not available

9

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

10

Troy-Bilt 1704692

PIN-DRIVE .125X1.0

$

$

Not available

11

Troy-Bilt 1747869GAR

ASSM-HITCH

$

$

Currently unavailable

12

MTD 1724639

PIN-CLEVIS

$

$

Not available

13

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1749338GAR

ASSM-LIFT TUBE

$

$

Currently unavailable

15

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

16

MTD 1757254

DECAL-LOGO

$

$

Not available

17

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

18

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

20

MTD 1715754GAR

SHOE-SKID

$

$

Not available

21

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

24

MTD 1700379GAR

BLADE-SCRAPER

$

$

Not available

25

Troy-Bilt 1751143GAR

ASSM-BLADE

$

$

Currently unavailable

26

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

27

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

28

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 1186250

NUT-JAM

$

$

Currently unavailable

30

Troy-Bilt 1103995

(BUY LOCAL)

$

$

Currently unavailable

31

Troy-Bilt 1749341GAR

ASSM-LIFT ROD

$

$

Currently unavailable

32

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

33

MTD 1748863GAR

ASSM-STRUT SUPPORT

$

$

Not available

34

Troy-Bilt 1748840GAR

ASSM-BRKT RH

$

$

Currently unavailable

35

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

36

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
