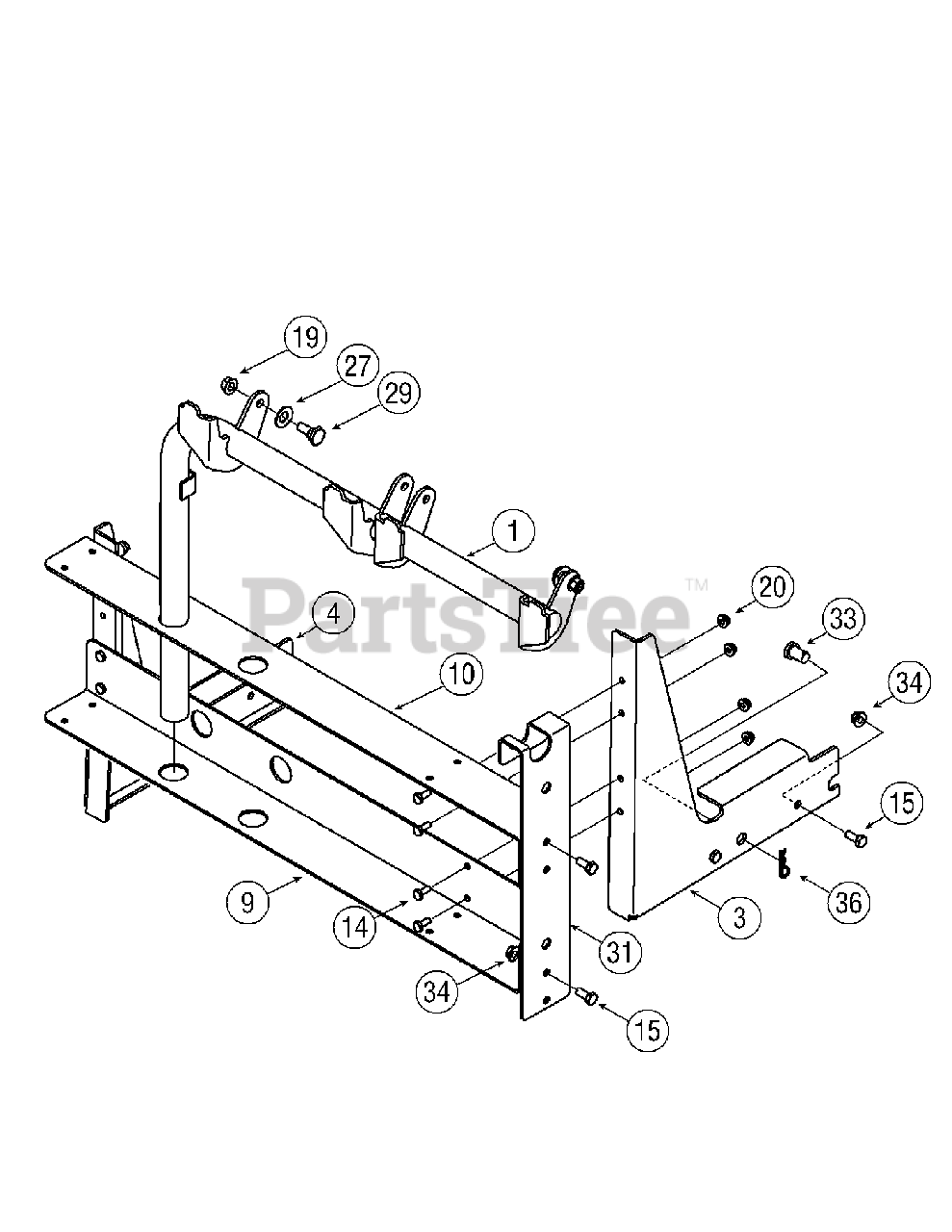

302 (590-302-000) - Cub Cadet 42" Double Bagger att Hanger & Mounting version 2 Parts Diagram

42" Double Bagger

Hanger & Mounting version 2 Parts Diagram

  • Title
1

Cub Cadet 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05858

Catcher Mounting Assembly RH
(Superseded to 703-05858A-0637)

Variations

Cub Cadet 703-05858-0637

SUPPORT BRACKET (RH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-05856

Catcher Mounting Assembly LH
(Superseded to 703-05856A-0637)

Variations

Cub Cadet 703-05856-0637

USE 703-05856A-0637 SUPPORT-L - POWDER BLACK (0637)

$109.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-05195

Hanger Bracket - Bottom
(Superseded to 703-05195-0637)

Variations

Cub Cadet 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-05833

Hanger Bracket - Top (w/ cutout)

Variations

Cub Cadet 703-05833-0637

BRACKET-TOP HANGER - POWDER BLACK (0637)

$120.99

$

Usually ships in 3-6 days

0

$104.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3015

Hex Bolt 1/4-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0253

Bell Washer

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

31

Cub Cadet 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

34

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 714-04023

Pin, Click, .092 x 1.64 Lg

$4.49

$

In Stock, Qty 20+

0
