302 (190-302-100) - Cub Cadet 42" Snow Blade General Assembly (2011 & after) Parts Diagram

42" Snow Blade

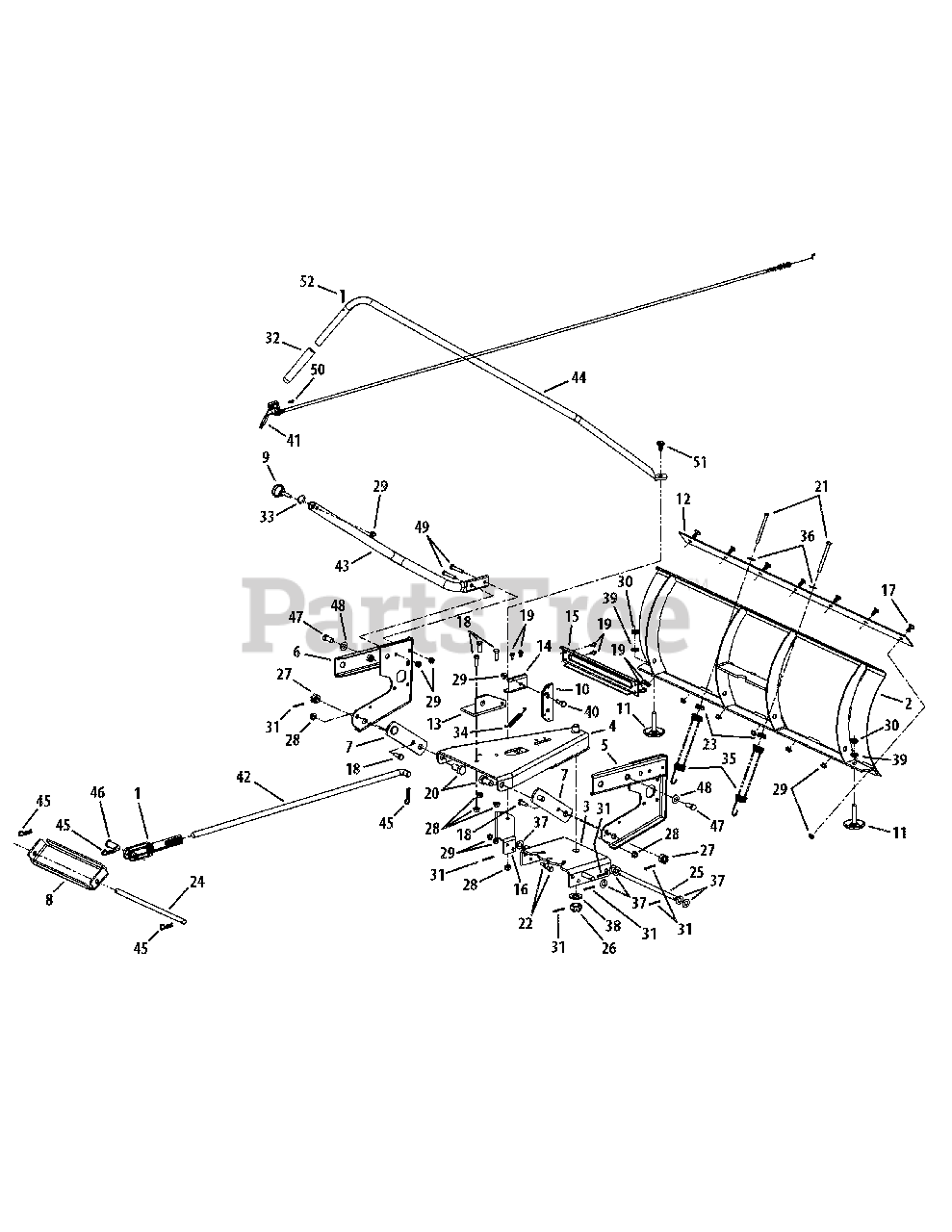

General Assembly (2011 & after) Parts Diagram

  • Title

1

Cub Cadet 10991-0637

Clevis Assembly Adjustment

$137.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0265-4021

Blade Dozer Assembly

$551.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-0266-4021

Blade Pivot Assembly

$134.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0267A-4021

Blade Frame Assembly

$354.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0268-4021

Hitch Blade Assembly, RH

$84.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0269-4021

Hitch Blade Assembly, LH

$86.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-0270-4021

Arm Mounting Assembly

$41.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-0271-4021

Lift Bracket Assembly

$65.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-0297

Eyebolt Assembly

$14.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 603-04904-4021

Lock Blade Plate Assembly

$44.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-0650-0637

Skid Shoe Assembly
(Superseded to 703-0650)

$47.99

$

In Stock, Qty 8

0

12

Cub Cadet 703-0658-4021

Cutting Edge Plate
(Superseded to 703-0658-0637)

$113.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-2679-4021

Front lift Bracket

$22.99

$

In Stock, only 1 left!

0

14

Cub Cadet 703-2693-4021

Pivot Bracket

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-2694-4021

Snowblade Support Bracket

$89.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-2696A-4021

Blade Adjustment Arm
(Superseded to 603-05175-4021)

$74.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-1207

Hex Cap Screw, 5/16-18 x 3.50

$6.99

$

In Stock, only 4 left!

0

22

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 711-3401

Rod, .500 Dia. x 12.50 Lg.

$34.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 711-3402A

Rod, .500 Dia. x 10.428 Lg.

$37.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

27

Cub Cadet 712-0386A

Slotted Hex Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 912-0431

Nut, Flange Lock, 3/8-16, Top Lock

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0331

Button Plug, .750 ID

$

$

Not available

34

Cub Cadet 932-0320

Extension Spring, .38 OD x 3.25 Lg.

$10.99

$

In Stock, Qty 6

0

35

Cub Cadet 732-3123

Extension Spring, 1.25 Dia. x 6.7 lg.

$28.99

$

In Stock, only 4 left!

0

36

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

37

Cub Cadet 936-0272

Flat Washer, .50 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0315

Flat Washer, .76 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

39

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

40

Cub Cadet 738-04320

Shoulder Screw, .405 x .435, 5/16-18

$5.49

$

In Stock, only 2 left!

0

41

Cub Cadet 946-3059B

Blade Release Cable

$56.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-3240-4021

Lift Rod, .625 Dia.

$196.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 749-3042-4021

Handle Support Tube
(Superseded to 749-3042A-4021)

$86.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 749-3043-4021

Blade Pivot Handle

$90.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 714-0147

Cotter Pin, 1/8 x 1.75

$4.99

$

In Stock, Qty 6

0

46

Cub Cadet 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0505

Hex Cap Screw, 7/16-14 x 1.00

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 736-0407

Bevel Washer, .45 x 1.00 x .062

$3.99

$

In Stock, Qty 11

0

49

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0127

Weld Nut, #10-24

$3.49

$

In Stock, Qty 13

0

51

Cub Cadet 738-0234

Shoulder Screw, 1/2 x .29

$10.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0
