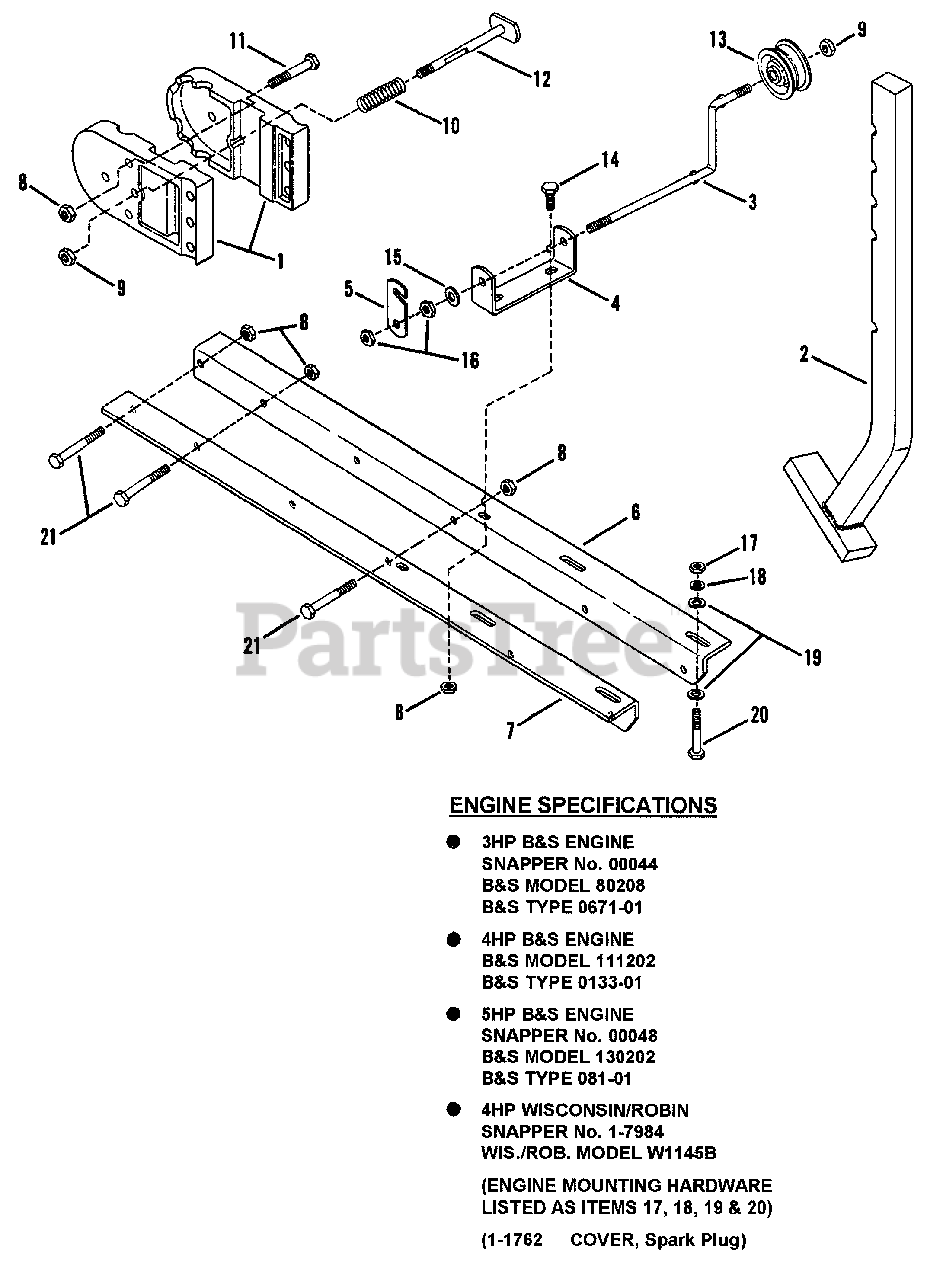

301T (85006) - Snapper Front-Tine Tiller, 3hp Frame Skid Arm Parts Diagram

Front-Tine Tiller, 3hp

Frame Skid Arm Parts Diagram

  • Title

1

Snapper 7011192

HITCH

$

$

Not available

2

Snapper 7047339

SKID-ARM

$

$

Currently unavailable

3

Snapper 7021186

* ARM, Idler

$

$

Not available

4

Snapper 7031167

* BRACKET, Idler

$

$

Currently unavailable

5

Snapper 7031168

* LINK, Idler
(Superseded to 7031168YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7037323

RAIL, Left Hand

$

$

Currently unavailable

7

Snapper 7037324

RAIL, Right Hand

$

$

Currently unavailable

8

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7090289

* NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7011193

SPRING, Pin Release
(Superseded to 7011193YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7090245

SCREW, 5/16-24 x 2" Hex Head Cap, Gr. 2

$

$

Not available

12

Snapper 7012591

PIN, Skid Arm Release
(Superseded to 7012591YP)

Note: was 40372

$37.99

$

Usually ships in 2-12 days

0

13

Snapper 7010948

* PULLEY, Idler
(Superseded to 1716615SM)

$22.99

$

Usually ships in 2-12 days

0

14

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap, Gr. 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

15

Snapper 7090122

* WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091630

* NUT, 3/8-24 Hex Gr. 2
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7090244

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 2
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

21

Snapper 7090358

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

Snapper 7050340

ASY, Idler Arm

Note: (Incl. items 3, 4, 5, 9, 13, 15 and 16)

$

$

Not available
