30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 250000001 - 250999999) (2005) AIR INTAKE / FILTRATION ASSEMBLY KOHLER CV15T 41624 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

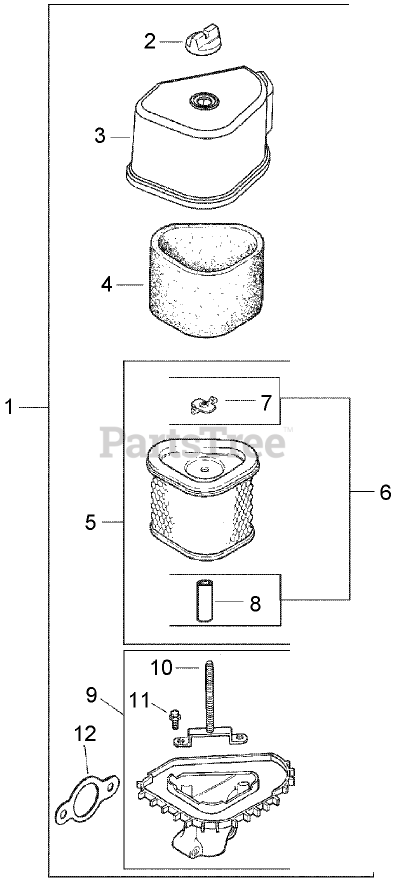

AIR INTAKE / FILTRATION ASSEMBLY KOHLER CV15T 41624 Parts Diagram

  • Title

1

Kohler 12 743 04-S

Air Cleaner Kit (Includes 2-12)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 20 341 01-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 12 096 44-S

Cover-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 12 083 12-S

Element-Precleaner

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 10

0

5

Kohler 12 083 10-S

Element-Cleaner, Air (Includes 6-8)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, Qty 10

0

6

Kohler 12 743 12-S

Seal Kit (Includes 7, 8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 100 08-S

Nut-Wing

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 032 11-S

Seal

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

9

Kohler 12 094 14-S

Base-Cleaner, Air (Includes 10, 11)
(Superseded to 12 094 17-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 12 072 04-S

Stud

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 5

0

11

Kohler 12 086 01-S

Screw

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

12

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
