30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 230000001 - 230005000) (2003) ENGINE CONTROL ASSEMBLY KOHLER CV15T-41608 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

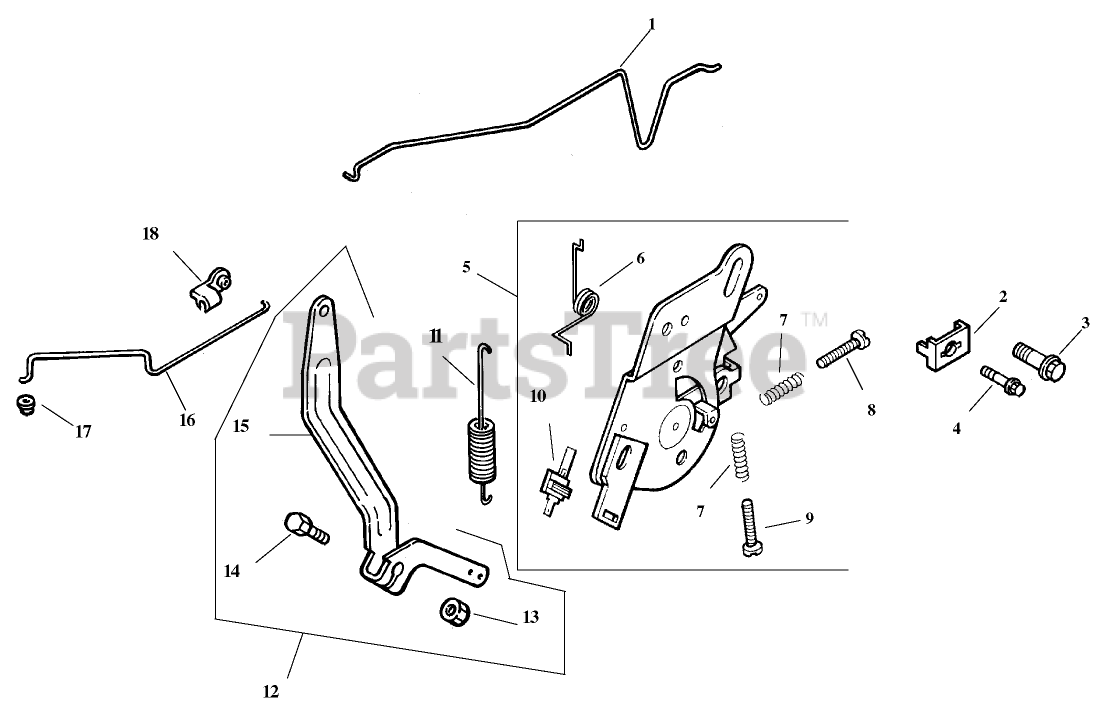

ENGINE CONTROL ASSEMBLY KOHLER CV15T-41608 Parts Diagram

  • Title
1

Kohler 12 079 07-S

Linkage-Choke

Note: Order Parts from Kohler

$7.99

$

In Stock, only 1 left!

0

2

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Order Parts from Kohler

$3.49

$

In Stock, Qty 5

0

3

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Order Parts from Kohler

$3.99

$

Usually ships in 2-5 days

0

5

Kohler 12 536 06-S

Speed Control ASM

Note: Order Parts from Kohler

$

$

Not available

6

Kohler 12 089 23-S

Spring-Choke Return (Incl. 6-10)

Note: Order Parts from Kohler

$10.99

$

In Stock, only 1 left!

0

7

Kohler 12 089 11-S

Spring-Control, Speed

Note: Order Parts from Kohler

$2.49

$

In Stock, only 4 left!

0

8

Kohler 12 086 38-S

Screw-Pan Hd withLoctite

Note: Order Parts from Kohler

$6.99

$

Usually ships in 2-5 days

0

9

Kohler M-443020-S

Screw-Pan Head (M4x0.7x20)

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 25 452 14

Terminal-Kill Switch
(Superseded to 25 452 14-S)

Note: Order Parts from Kohler

$

$

Not available

11

Kohler 12 089 19-S

Spring-Governor

Note: Order Parts from Kohler

$

$

Not available

12

Kohler 12 755 83-S

Kit-Governor Lever (Incl. 13-15)

Note: Order Parts from Kohler

$6.49

$

In Stock, only 1 left!

0

13

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

14

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Order Parts from Kohler

$4.99

$

Usually ships in 2-5 days

0

15

Kohler 12 090 28-S

Lever-Governor

Note: Order Parts from Kohler

$5.99

$

In Stock, only 1 left!

0

16

Kohler 12 079 01-S

Linkage-Throttle

Note: Order Parts from Kohler

$11.99

$

In Stock, only 1 left!

0

17

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Order Parts from Kohler

$5.99

$

In Stock, Qty 20+

0

18

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Order Parts from Kohler

$5.99

$

In Stock, Qty 14

0
