30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 230000001 - 230005000) (2003) CRANKCASE ASSEMBLY KOHLER CV15T-41608 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

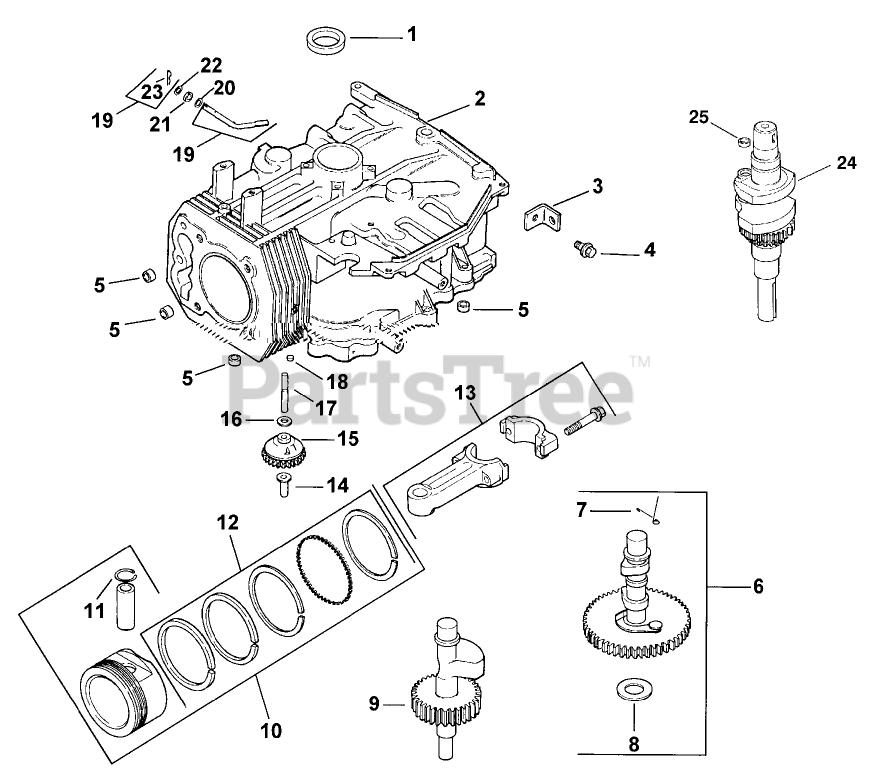

CRANKCASE ASSEMBLY KOHLER CV15T-41608 Parts Diagram

  • Title

1

Kohler 12 032 03-S

Seal-Oil

Note: Order Parts from Kohler

$9.99

$

Usually ships in 2-5 days

0

2

Toro 12 522 18-S

Shodblock

Note: Order Parts from Kohler

$

$

Currently unavailable

3

Kohler 12 445 02-S

Strap-Lifting

Note: Order Parts from Kohler

$17.99

$

Usually ships in 2-5 days

0

4

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Order Parts from Kohler

$4.49

$

In Stock, only 3 left!

0

6

Kohler 12 755 49-S

Kit-Camshaft (Incl. 7-8)

Note: Order Parts from Kohler

$209.99

$

Usually ships in 2-5 days

0

7

Kohler 12 089 31-S

Spring-Actuating
(Superseded to 12 089 37-S)

Note: Order Parts from Kohler

$2.99

$

In Stock, only 1 left!

0

8

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Order Parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Order Parts from Kohler

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Order Parts from Kohler

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 144 27-S

Shaft-Balance

Note: Order Parts from Kohler

$111.99

$

Usually ships in 2-5 days

0

10

Kohler 12 874 07-S

Piston w/Ring Set STD(Incl. 11, 12)

Note: Order Parts from Kohler

$

$

Not available

10

Kohler 12 874 08-S

Piston w/Ring Set (.25)

Note: Order Parts from Kohler

$

$

Not available

10

Kohler 12 874 09-S

Piston w/Ring Set (.50)

Note: Order Parts from Kohler

$

$

Not available

10

Kohler 12 874 11-S

Piston w/Ring Set (.08)

Note: Order Parts from Kohler

$

$

Not available

11

Kohler 12 018 02-S

Retainer-Pin, Piston

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

12

Kohler 12 108 07-S

Ring Set (Std. and .08)

Note: Order Parts from Kohler

$82.99

$

In Stock, only 1 left!

0

12

Kohler 12 108 08-S

Ring Set (.25)

Note: Order Parts from Kohler

$111.99

$

Usually ships in 2-5 days

0

12

Kohler 12 108 09-S

Ring Set (.50)

Note: Order Parts from Kohler

$

$

Not available

13

Kohler 12 067 05-S

Rod-Connecting (STD)

Note: Order Parts from Kohler

$147.99

$

Usually ships in 2-5 days

0

13

Kohler 12 067 06-S

Rod-Connecting (.25)

Note: Order Parts from Kohler

$124.99

$

Usually ships in 2-5 days

0

14

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Order Parts from Kohler

$3.49

$

In Stock, Qty 9

0

15

Kohler 12 043 05-S

Gear-Governor

Note: Order Parts from Kohler

$25.99

$

Usually ships in 2-5 days

0

16

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Order Parts from Kohler

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09-S

PLUG-CUP

Note: Order Parts from Kohler

$4.99

$

In Stock, only 2 left!

0

19

Kohler 12 755 64-S

Kit-Governor Cross Shaft (Incl. 23)

Note: Order Parts from Kohler

$12.99

$

Usually ships in 2-5 days

0

20

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 5

0

21

Kohler 12 032 01-S

Seal-Cross Shaft, Governor

Note: Order Parts from Kohler

$4.99

$

In Stock, Qty 8

0

22

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 7

0

23

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 12 014 30-S

Crankshaft ASM (Incl. 25)

Note: Order Parts from Kohler

$413.99

$

Usually ships in 2-5 days

0

25

Kohler 12 139 01-S

Plug-Cup

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Order Parts from Kohler

$89.99

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$89.99

$

Usually ships in 2-5 days

0
