30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 220000001 - 220999999) (2002) IGNITION AND ELECTRICAL ASSEMBLY KOHLER MODEL CV15T-41608 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

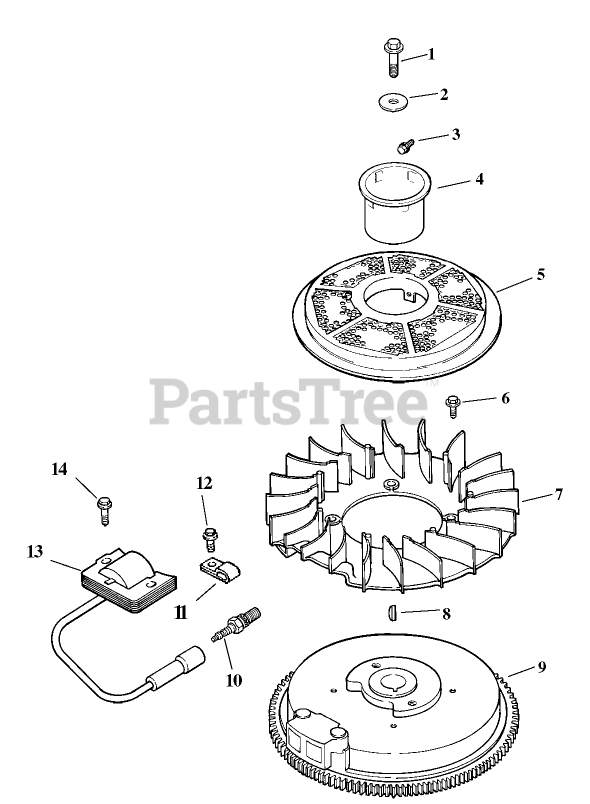

IGNITION AND ELECTRICAL ASSEMBLY KOHLER MODEL CV15T-41608 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Order Parts from Kohler

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Order Parts from Kohler

$6.49

$

In Stock, only 2 left!

0

3

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Order Parts from Kohler

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 109 07-S

Cup-Drive, Starter

Note: Order Parts from Kohler

$

$

Not available

5

Kohler 12 162 09-S

Screen-Grass

Note: Order Parts from Kohler

$40.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 7

0

7

Kohler 12 157 03-S

Fan

Note: Order Parts from Kohler

$

$

Not available

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Order Parts from Kohler

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 025 31-S

Flywheel
(Superseded to 12 025 73-S)

Note: Order Parts from Kohler

$

$

Not available

8

Kohler 12 403 01-S

Rectifier-regulator
(Superseded to 12 755 111-S)

Note: Order Parts from Kohler

$127.99

$

Usually ships in 2-5 days

0

9

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

10

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

Note: Order Parts from Kohler

$20.99

$

Usually ships in 2-5 days

0

10

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 6

0

11

Kohler 41 155 03-S

Connector

Note: Order Parts from Kohler

$4.99

$

Usually ships in 2-5 days

0

11

Kohler X-728-1-S

Clip

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Order Parts from Kohler

$4.49

$

In Stock, only 2 left!

0

13

Kohler 12 584 05-S

Module-Ignition

Note: Order Parts from Kohler

$125.99

$

In Stock, only 1 left!

0

13

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

14

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 20+

0

Kohler 25 518 05-S

Lead

Note: Order Parts from Kohler

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 518 05-S

Lead

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 12 454 03-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 454 03-S

Tie-Wire

Note: Order Parts from Kohler

$3.49

$

Usually ships in 2-5 days

0
