30197 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 099000001 - 099999999) (1999) TRANSMISSION, PULLEYS AND DRIVE BELT Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 15hp

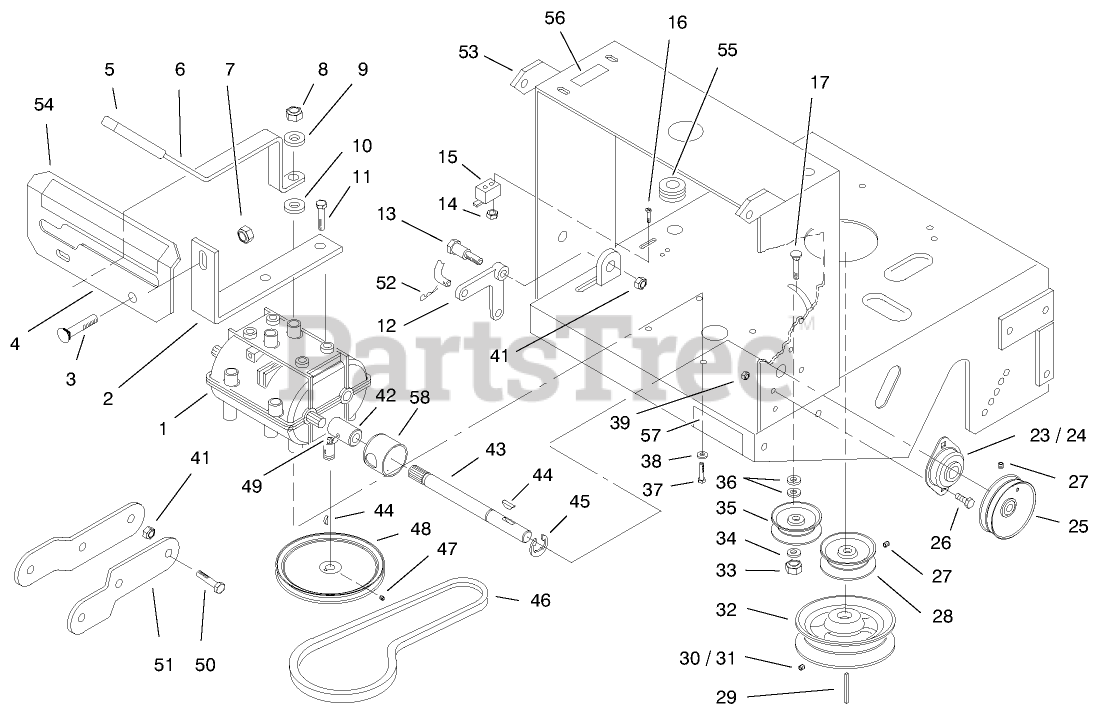

TRANSMISSION, PULLEYS AND DRIVE BELT Parts Diagram

  • Title
1

Transmission-Peerless Obtain Parts From Peerless Model No. 700-070a

$

$

Not available

2

Toro E323389

Leg-Shifter Lever
(Superseded to 1-323389-03)

$30.99

$

In Stock, only 2 left!

0

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro E323387

Shifter Plate
(Superseded to 1-323387-03)

$67.99

$

In Stock, only 1 left!

0

5

Toro E303020

Grip
(Superseded to 1-303020)

$2.99

$

In Stock, Qty 6

0

6

Toro E323570

Lever-Shift
(Superseded to 98-3274-03)

$53.99

$

In Stock, only 1 left!

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

9

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

10

Toro E323379

Washer
(Superseded to 1-323379)

$3.49

$

In Stock, only 2 left!

0

11

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

12

Toro E303186

Bell Crank
(Superseded to 1-303186)

$58.99

$

In Stock, only 1 left!

0

13

Toro E603403

Bolt-Shoulder
(Superseded to 1-603403)

$17.99

$

In Stock, only 2 left!

0

14

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

15

Toro E513152

Switch-Seat
(Superseded to 1-513152)

$13.99

$

In Stock, Qty 15

0

16

Toro E803028

Screw
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

17

Toro E807511

Bolt-CARR
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

23

Toro E323252

Bearing
(Superseded to 1-323252)

$18.99

$

In Stock, Qty 8

0

24

Toro E323254

Flange
(Superseded to 1-323254)

$10.99

$

In Stock, Qty 11

0

25

Toro E323257

Sheave
(Superseded to 103-6511)

$119.99

$

In Stock, only 4 left!

0

26

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro E803310

Screw-Set
(Superseded to 1-803310)

$2.99

$

In Stock, only 1 left!

0

28

Toro E323256

Sheave
(Superseded to 103-1666)

$41.99

$

Usually ships in 3-6 days

0

29

Toro E807264

Key
(Superseded to 1-807264)

$5.49

$

In Stock, Qty 7

0

30

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

31

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

32

Toro E403087

Pulley
(Superseded to 103-1667)

$79.99

$

Usually ships in 3-6 days

0

33

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

35

Toro E323285

Idler Pulley
(Superseded to 130-8362)

$38.99

$

In Stock, Qty 7

0

36

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

41

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

42

Toro E323680

Coupling
(Superseded to 1-323680)

$41.99

$

In Stock, only 2 left!

0

43

Toro E323502

Output Shaft
(Superseded to 1-323502)

$29.99

$

In Stock, only 2 left!

0

44

Toro E807009

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

45

Toro E808523

Ring-Retaining
(Superseded to 32151-62)

$1.99

$

In Stock, Qty 19

0

46

Toro E323630

Belt-Trans Drive
(Superseded to 1-323630)

$34.99

$

In Stock, Qty 16

0

47

Toro E803293

Screw-Set
(Superseded to 3245-41)

$2.99

$

In Stock, only 3 left!

0

48

Toro E323278

Sheave
(Superseded to 1-323278)

$80.99

$

In Stock, only 3 left!

0

49

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

50

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

51

Toro E323318

Hitch Bracket
(Superseded to 1-323318-01)

$

$

Not available

52

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

53

Toro E322201

Deck-Engine
(Superseded to 1-321020)

$

$

Not available

54

Toro E323560

Decal-Ground Speed
(Superseded to 98-3256)

$18.99

$

Usually ships in 3-6 days

0

55

Toro E543296

Grommet-Fuel Line
(Superseded to 1-543296)

$8.49

$

In Stock, only 4 left!

0

56

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

57

Toro E323562

Decal-Caution
(Superseded to 98-0776)

$18.99

$

Usually ships in 3-6 days

0

58

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!
