30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) STARTER ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

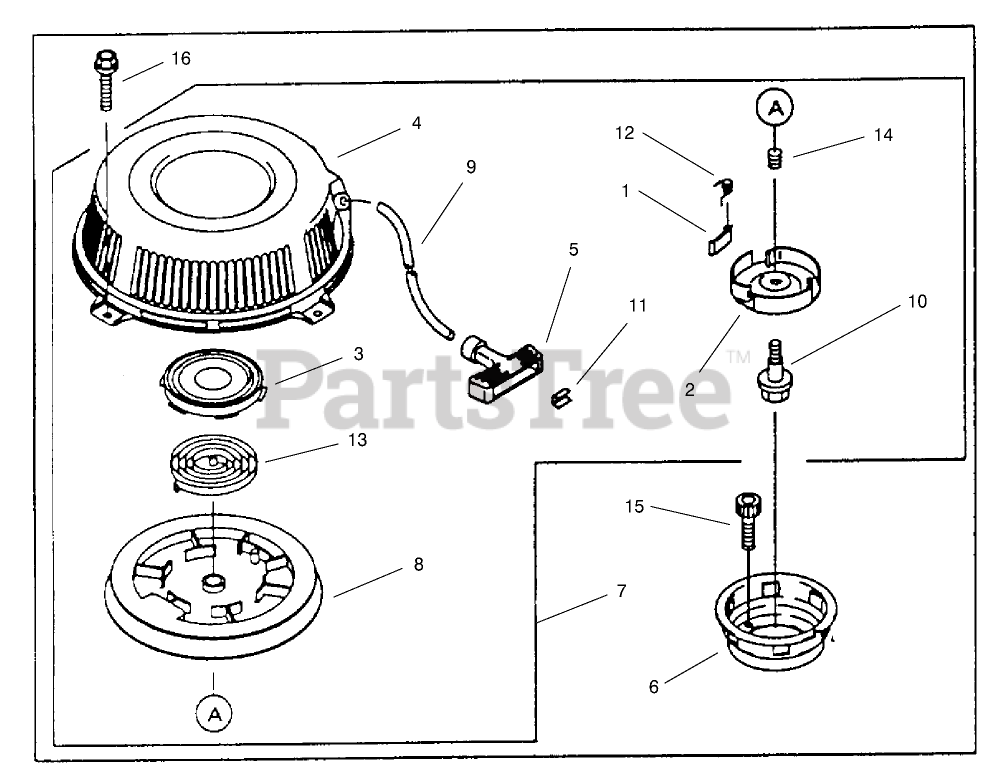

STARTER ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title

1

Kawasaki 13165-2073

Pawl
(Superseded to 13165-2057)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, only 2 left!

0

2

Kawasaki 14020-2054

Retainer

Note: Obtain Parts From Kawasaki

$

$

Not available

3

Kawasaki 32099-2060

Case

Note: Obtain Parts From Kawasaki

$7.99

$

In Stock, only 4 left!

0

4

Toro 32099-2239-yk

Case-Recoil Starter

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

5

Kawasaki 46075-2059

Grip
(Superseded to 46075-2016)

Note: Obtain Parts From Kawasaki

$7.49

$

Usually ships in 2-5 days

0

6

Toro 49080-2144

Pulley-Starting

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

7

Kawasaki 49088-2412-YK

Starter-Recoil

Note: Obtain Parts From Kawasaki

$175.99

$

In Stock, only 4 left!

0

8

Kawasaki 59101-2054

Reel

Note: Obtain Parts From Kawasaki

$

$

Not available

9

Kawasaki 59106-2060

Rope

Note: Obtain Parts From Kawasaki

$

$

Not available

10

Kawasaki 92001-2027

Bolt
(Superseded to 314501-3447A)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 3 left!

0

11

Kawasaki 92022-2248

Washer

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 4 left!

0

12

Kawasaki 92081-2021

Spring

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 14

0

13

Kawasaki 92081-2267

Spring

Note: Obtain Parts From Kawasaki

$34.99

$

Usually ships in 2-5 days

0

14

Toro 92081-2268

Spring

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

15

Toro 120p0620

Bolt-Socket

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

16

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0
