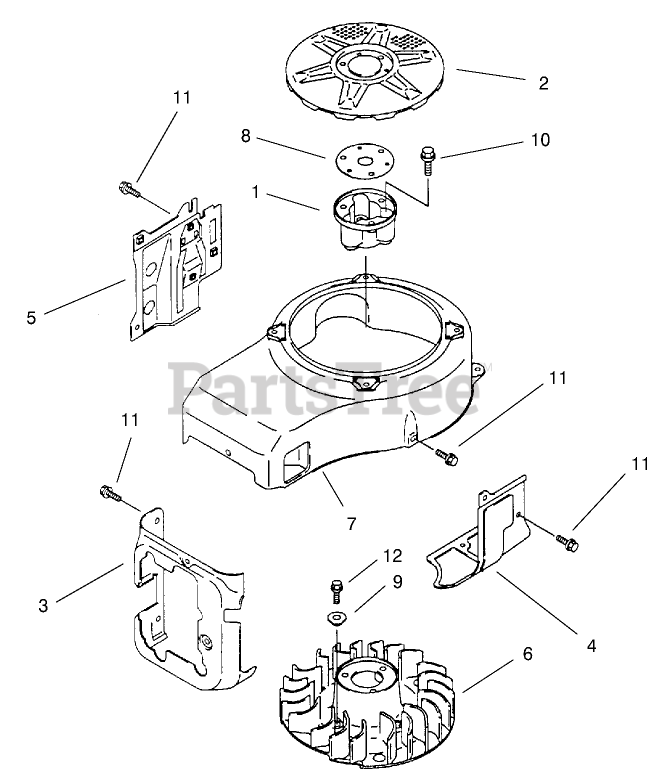

30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) COOLING EQUIPMENT ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

COOLING EQUIPMENT ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title

1

Kawasaki 11044-2084

Bracket

Note: Obtain Parts From Kawasaki

$

$

Not available

2

Kawasaki 14037-2104-9H

Screen

Note: Obtain Parts From Kawasaki

$

$

Not available

3

Toro 49089-2231-9H

Shroud-Engine

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Toro 49089-2232-9H

Shroud-Engine

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

5

Kawasaki 49089-2233-9H

Shroud-Engine
(Superseded to 49089-2233-9B)

Note: Obtain Parts From Kawasaki

$17.99

$

Usually ships in 2-5 days

0

6

Kawasaki 59041-2081

Fan

Note: Obtain Parts From Kawasaki

$

$

Not available

7

Kawasaki 59066-2432-9H

Housing-Fan
(Superseded to 59066-2432-9B)

Note: Obtain Parts From Kawasaki

$

$

Not available

8

Kawasaki 92025-2003

Shim T-1.20
(Superseded to M88579)

Note: Obtain Parts From Kawasaki

$

$

Not available

9

Kawasaki 92143-2179

Collar

Note: Obtain Parts From Kawasaki

$

$

Not available

10

Toro 130b0820

Bolt-Flange

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11

Toro 130G0612

Bolt-Flanged (6X12)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

12

Toro 130G0614

Bolt-Flanged (6X14)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
