30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

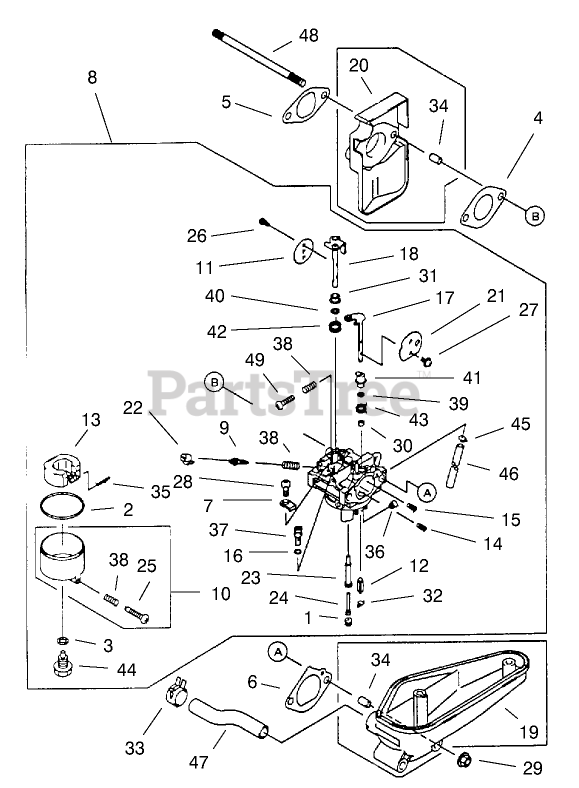

CARBURETOR ASSEMBLY KAWASAKI FC420V-ES15 Parts Diagram

  • Title
1

Kawasaki 11003-2101

Seat-Valve

Note: Obtain Parts From Kawasaki

$

$

Not available

2

Kawasaki 11009-2024

Gasket
(Superseded to 313650-6128-00)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 4 left!

0

3

Kawasaki 11009-2025

Gasket
(Superseded to 11009-2087)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 18

0

4

Kawasaki 11060-2339

Gasket-Carburetor
(Superseded to 11009-2343)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 20+

0

5

Kawasaki 11060-2340

Gasket-Insulator
(Superseded to 11009-2506)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 7

0

6

Kawasaki 11060-2341

Gasket-Intake Pipe
(Superseded to 11009-2507)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

7

Kawasaki 13183-2252

Plate

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, only 4 left!

0

8

Kawasaki 15003-2349

Carburetor Assy

Note: Obtain Parts From Kawasaki

$268.99

$

Usually ships in 2-5 days

0

9

Kawasaki 16014-2075

Screw-Pilot Air
(Superseded to 16014-2078)

Note: Obtain Parts From Kawasaki

$8.99

$

Usually ships in 2-5 days

0

10

Kawasaki 16020-2109

Chamber-Float
(Superseded to 16020-2094)

Note: Obtain Parts From Kawasaki

$47.99

$

Usually ships in 2-5 days

0

11

Kawasaki 16025-2137

Valve-Throttle, #90

Note: Obtain Parts From Kawasaki

$7.99

$

In Stock, only 1 left!

0

12

Kawasaki 16030-2073

Valve-Float

Note: Obtain Parts From Kawasaki

$25.99

$

In Stock, Qty 8

0

13

Kawasaki 16031-2066

Float

Note: Obtain Parts From Kawasaki

$29.99

$

In Stock, only 1 left!

0

14

Kawasaki 16035-2056

Jet-Air, #1.8

Note: Obtain Parts From Kawasaki

$8.99

$

Usually ships in 2-5 days

0

15

Kawasaki 16035-2058

Jet-Air, #1.1
(Superseded to 315825-6113A)

Note: Obtain Parts From Kawasaki

$9.49

$

Usually ships in 2-5 days

0

16

Kawasaki 16038-024

Gasket

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

17

Toro 16041-2163

Shaft-Carburetor Choke

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

18

Kawasaki 16041-2215

Shaft-Carburetor Throttle
(Superseded to 16041-2164)

Note: Obtain Parts From Kawasaki

$

$

Not available

19

Kawasaki 16060-2130

Pipe-Intake
(Superseded to 16060-6001)

Note: Obtain Parts From Kawasaki

$

$

Not available

20

Kawasaki 16073-2108

Insulator
(Superseded to 16073-6001)

Note: Obtain Parts From Kawasaki

$

$

Not available

21

Toro 16126-2170

Valve-Choke

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

22

Kawasaki 39076-2053

Limiter

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, only 1 left!

0

23

Toro 49121-2188

Nozzle-Main, 89A

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

24

Kawasaki 49123-2075

Holder-Main Jet

Note: Obtain Parts From Kawasaki

$17.99

$

In Stock, only 1 left!

0

25

Kawasaki 92009-2015

Screw
(Superseded to 315470-6133A)

Note: Obtain Parts From Kawasaki

$5.49

$

Usually ships in 2-5 days

0

26

Kawasaki 92009-2080

Screw
(Superseded to 92009-3710)

Note: Obtain Parts From Kawasaki

$

$

Not available

27

Kawasaki 92009-2081

Screw
(Superseded to 92009-2026)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

28

Kawasaki 92009-2244

Screw

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 1 left!

0

29

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, only 2 left!

0

30

Kawasaki 92027-2003

Collar

Note: Obtain Parts From Kawasaki

$3.99

$

Usually ships in 2-5 days

0

31

Kawasaki 92027-2025

Collar

Note: Obtain Parts From Kawasaki

$3.99

$

Usually ships in 2-5 days

0

32

Kawasaki 92033-2067

Ring-Snap

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, only 3 left!

0

33

Kawasaki 92037-2012

Clamp

Note: Obtain Parts From Kawasaki

$

$

Not available

34

Kawasaki 92043-1263

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 5

0

35

Kawasaki 92043-2006

Pin

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, only 1 left!

0

36

Toro 92063-2257

Jet-Main, #100

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

37

Kawasaki 92064-2101

Jet-Main, #60

Note: Obtain Parts From Kawasaki

$

$

Not available

38

Kawasaki 92081-2009

Spring

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, only 3 left!

0

39

Kawasaki 92093-2069

Seal

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 4 left!

0

40

Kawasaki 92093-2082

Seal

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0

41

Toro 92143-2142

Ring

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

42

Kawasaki 92144-2037

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

43

Kawasaki 92144-2160

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

44

Toro 92150-2301

Bolt

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

45

Kawasaki 92170-2023

Clamp

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

46

Kawasaki 92190-2011

Tube

Note: Obtain Parts From Kawasaki

$

$

Not available

48

Kawasaki 172G06115

Bolt-Stud
(Superseded to 172BA06115)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 16

0

49

Toro 214B0414

Screw-Pan

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
