30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 210000001 - 210999999) (2001) SPINDLE ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

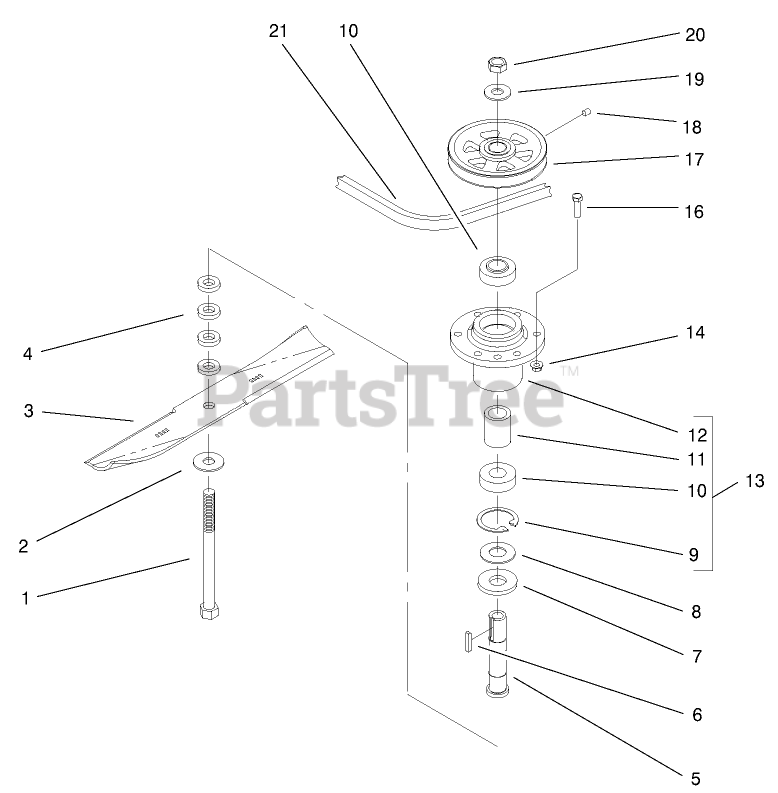

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro E800861

Screw-HH
(Superseded to 1-800861)

$20.99

$

In Stock, Qty 15

0

2

Toro E513208

Spring-Disk
(Superseded to 1-513208)

$9.49

$

In Stock, Qty 20+

0

3

Toro E323515

Blade-High Lift
(Superseded to 103-2527)

$34.99

$

In Stock, Qty 20+

0

3

Toro E403149

Blade-Low Lift
(Superseded to 103-2507)

$28.99

$

Usually ships in 3-6 days

0

4

Toro E323539

Spacer
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

5

Toro E323529

Tube Spindle Short
(Superseded to 1-323529)

$94.99

$

In Stock, Qty 8

0

6

Toro E807267

Key
(Superseded to 1-807267)

$2.99

$

In Stock, Qty 20+

0

7

Toro E323533

Spacer
(Superseded to 1-323533)

$5.49

$

In Stock, Qty 8

0

8

Toro E633573

Guard
(Superseded to 1-633573)

$5.49

$

In Stock, only 2 left!

0

9

Toro E808502

Ring-Snap
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 20+

0

10

Toro E513016

Bearing
(Superseded to 1-513016)

$86.99

$

In Stock, Qty 20+

0

11

Toro E323528

Spacer
(Superseded to 1-323528)

$9.99

$

In Stock, Qty 10

0

12

Toro E323532

Housing
(Superseded to 103-7975)

$66.99

$

In Stock, only 2 left!

0

13

Toro E634619

Housing-Spindle
(Superseded to 107-4065)

$168.99

$

In Stock, only 1 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

17

Toro E403183

Sheave
(Superseded to 1-403183)

$74.99

$

In Stock, Qty 6

0

18

Toro E803310

Screw-Set
(Superseded to 1-803310)

$2.99

$

In Stock, only 2 left!

0

19

Toro E323399

Spacer
(Superseded to 1-323399)

$9.99

$

Usually ships in 3-6 days

0

20

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

21

Toro E403171

Belt
(Superseded to 1-403171)

$151.99

$

In Stock, only 1 left!
