30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 200000001 - 200999999) (2000) UPPER HANDLE ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

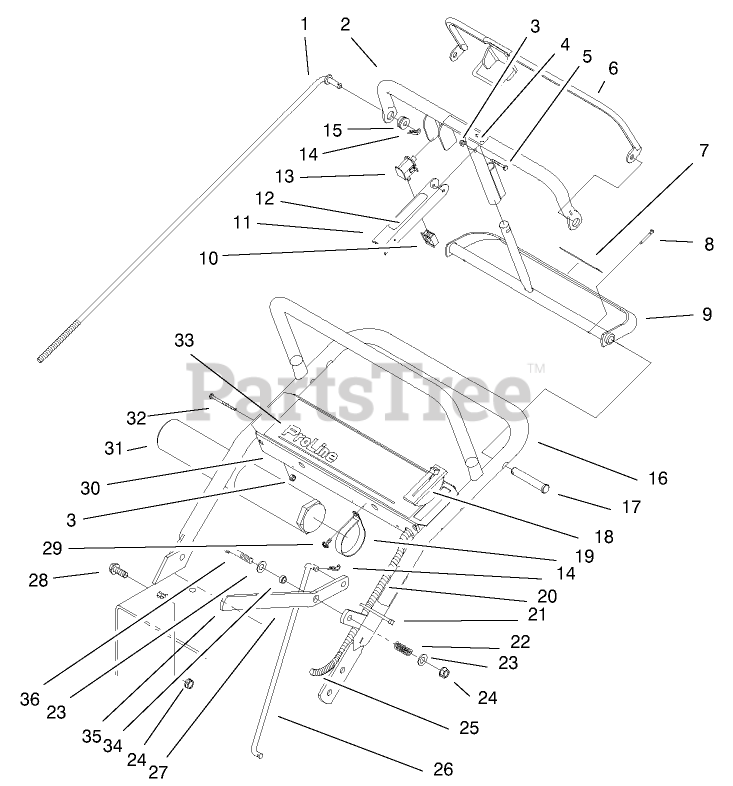

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro E323569

Rod-Control
(Superseded to 98-3282)

$46.99

$

Usually ships in 3-6 days

0

2

Toro E322215

Control Bar
(Superseded to 95-5522-03)

$278.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

6

Toro E322208

Bail ASM
(Superseded to 82-7680-03)

$152.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-8501

Control Pivot
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

10

Toro 218-595

CONNECTOR-BODY

$

$

Not available

11

Toro E323614

Lever-Parking Brake
(Superseded to 98-3261-03)

$37.99

$

Usually ships in 3-6 days

0

12

Toro E323558

Decal-Parking Brake
(Superseded to 98-3266)

$53.99

$

Usually ships in 3-6 days

0

13

Toro 740275

SWITCH

$20.99

$

In Stock, only 2 left!

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

15

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

16

Toro E322216

Upper Handle ASM
(Superseded to 98-3267-03)

$283.99

$

Usually ships in 3-6 days

0

17

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

18

Toro E323637

Throttle Control
(Superseded to 1-323637)

$104.99

$

In Stock, only 2 left!

0

19

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

20

Toro E323563

Decal-Blade Engagement
(Superseded to 95-5537)

$10.99

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro E303160

Spring
(Superseded to 1-303160)

$6.49

$

In Stock, only 2 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 98-3257

WIRE HARNESS

$

$

Not available

26

Toro E323576

Linkage-Blade Drive
(Superseded to 98-3279)

$34.99

$

Usually ships in 3-6 days

0

27

Toro E323573

Lever-Blade Engagement
(Superseded to 98-3287-03)

$47.99

$

Usually ships in 3-6 days

0

28

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro E304259

Panel-Control
(Superseded to 1-304259)

$

$

Not available

31

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

32

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

33

Toro E323564

Decal-Panel
(Superseded to 1-323564)

$

$

Not available

34

Toro 99-8509

SPACER

$14.99

$

Usually ships in 3-6 days

0

35

Toro E303020

Grip
(Superseded to 1-303020)

$2.99

$

In Stock, Qty 6

0

36

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
