30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 200000001 - 200999999) (2000) LUBRICATION-EQUIPMENT Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

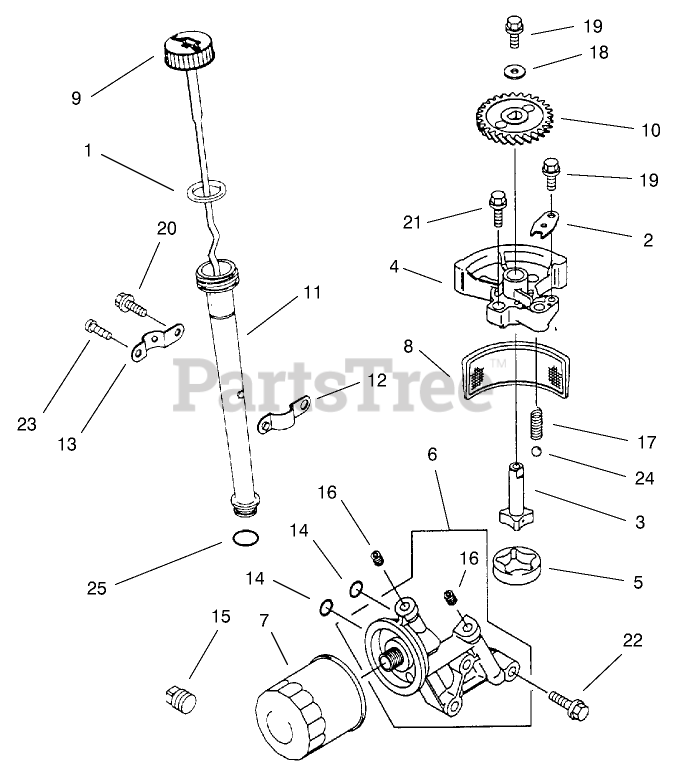

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

1

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

2

Kawasaki 13270-2054

Plate
(Superseded to 13169-2360)

$0.99

$

Usually ships in 2-5 days

0

3

Toro 16082-2059

Pump Assy-Oil

$

$

Currently unavailable

4

Toro 16142-2068

Cover-Pump

$

$

Currently unavailable

5

Kawasaki 16154-2052

Rotor-Pump

$

$

Not available

6

Toro 31064-6001

Pipe-Comp

$

$

Currently unavailable

7

Kawasaki 49065-2071

Filter-Oil

$15.99

$

In Stock, Qty 9

0

8

Kawasaki 49065-2073

Filter-Oil

$

$

Not available

9

Kawasaki 52005-2105

Gauge

$

$

Not available

10

Toro 59056-2090

Gear-Helical

$

$

Currently unavailable

11

Kawasaki 59231-2062

Filler

$5.99

$

Usually ships in 2-5 days

0

12

Toro 92037-2199

Clamp

$

$

Currently unavailable

13

Kawasaki 92037-2200

Clamp

$1.99

$

In Stock, only 1 left!

0

14

Kawasaki 92055-2073

Ring-O

$

$

Not available

15

Toro 92066-2079

Plug

$

$

Currently unavailable

16

Kawasaki 92066-2211

Plug

$2.99

$

Usually ships in 2-5 days

0

17

Kawasaki 92144-2391

Spring

$0.99

$

Usually ships in 2-5 days

0

18

Kawasaki 92200-2035

Washer

$0.99

$

In Stock, Qty 8

0

19

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 12

0

20

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

21

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

$0.99

$

In Stock, only 1 left!

0

22

Kawasaki 130B0840

Bolt-Flanged
(Superseded to 130BA0840)

$2.49

$

In Stock, Qty 7

0

23

Kawasaki 220B0608

Screw-Pan Cros
(Superseded to 220AA0608)

$0.99

$

In Stock, Qty 20+

0

24

Kawasaki 600A1000

Ball

$0.99

$

In Stock, Qty 7

0

25

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
