30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 099000201 - 099999999) (1999) WHEEL, BRAKES AND TRACTION BELTS Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

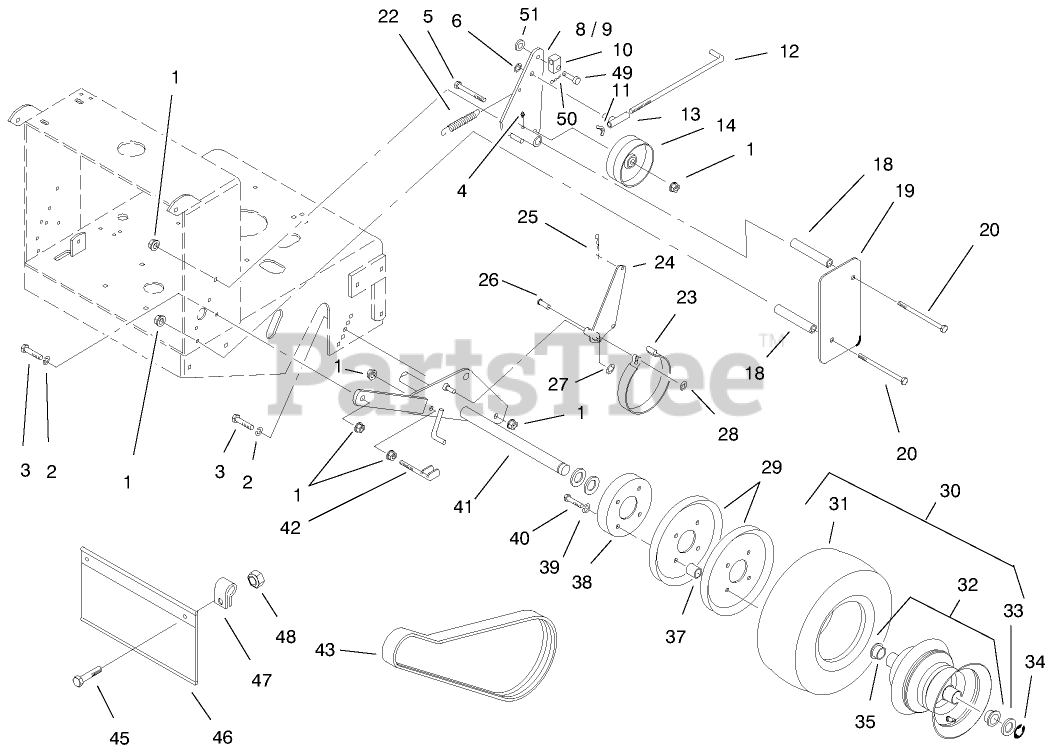

WHEEL, BRAKES AND TRACTION BELTS Parts Diagram

  • Title

1

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

2

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

5

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro E808522

Ring
(Superseded to 32151-47)

$2.99

$

In Stock, only 3 left!

0

8

Toro E322205

Idler Arm ASM LH
(Superseded to 110-4926-03)

$139.99

$

Usually ships in 3-6 days

0

9

Toro E322206

Idler Arm ASM RH
(Superseded to 110-4925-03)

$139.99

$

Usually ships in 3-6 days

0

10

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

11

Toro E513959

Wingnut
(Superseded to 1-513959)

$6.49

$

Usually ships in 3-6 days

0

12

Toro E323296

Brake Rod
(Superseded to 1-323296)

$18.99

$

Usually ships in 3-6 days

0

13

Toro E322125

Swivel
(Superseded to 110-5866)

$25.99

$

Usually ships in 3-6 days

0

14

Toro E323634

Idler-Wheel Drive
(Superseded to 1-323634)

$90.99

$

In Stock, Qty 9

0

18

Toro E323694

Idler
(Superseded to 1-323694)

$17.99

$

Usually ships in 3-6 days

0

19

Toro E323632

Shield
(Superseded to 98-5131-01)

$51.99

$

Usually ships in 3-6 days

0

20

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

22

Toro E323574

Spring-Extension
(Superseded to 98-3273)

$28.99

$

In Stock, only 2 left!

0

23

Toro E323595

Band-Brake
(Superseded to 1-323595)

$100.99

$

In Stock, only 2 left!

0

24

Toro E322209

Brake Arm ASM
(Superseded to 1-322209-03)

$128.99

$

Usually ships in 3-6 days

0

25

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

26

Toro E323307

Pin
(Superseded to 1-323307)

$5.49

$

In Stock, Qty 15

0

27

Toro E808501

Ring-Snap
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

28

Toro E803051

Nut
(Superseded to 1-803051)

$2.99

$

In Stock, Qty 20+

0

29

Toro E323253

Sheave
(Superseded to 1-323253)

$51.99

$

In Stock, only 4 left!

0

30

WHEEL AND TIRE ASM

$

$

Not available

31

Toro E303125

Tire
(Superseded to 1-323720)

$120.99

$

Usually ships in 3-6 days

0

32

Toro E323360

Assembly-Wheel
(Superseded to 1-323360)

$131.99

$

In Stock, only 1 left!

0

33

Toro E523157

Spacer
(Superseded to 1-523157)

$1.49

$

In Stock, Qty 20+

0

33

Toro E543436

Spacer-18 GA
(Superseded to 1-543436)

$1.49

$

In Stock, Qty 9

0

34

Toro E808519

Ring,Snap E
(Superseded to 1-808519)

$2.99

$

In Stock, only 4 left!

0

35

Toro E323329

Bearing
(Superseded to 1-323329)

$62.99

$

In Stock, only 1 left!

0

37

Toro E323260

Spacer
(Superseded to 1-323260)

$10.99

$

Usually ships in 3-6 days

0

38

Toro E323261

Drum-Brake
(Superseded to 1-323261)

$19.99

$

In Stock, Qty 7

0

39

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Toro E322212

Axle ASM
(Superseded to 1-322212-03)

$458.99

$

Usually ships in 3-6 days

0

42

Toro E412358

Scraper
(Superseded to 1-412358)

$31.99

$

In Stock, only 2 left!

0

43

Toro E323631

Belt-Drive
(Superseded to 1-323631)

$80.99

$

In Stock, Qty 8

0

45

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

46

Toro E323607

Shield-Trailing
(Superseded to 98-3259)

$70.99

$

In Stock, only 2 left!

0

47

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

48

Toro 32146-4

NUT-LOCK NI

$

$

Not available

49

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

50

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

51

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
