30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 099000001 - 099000200) (1999) DECK, DRIVE PULLEYS AND DEFLECTOR Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

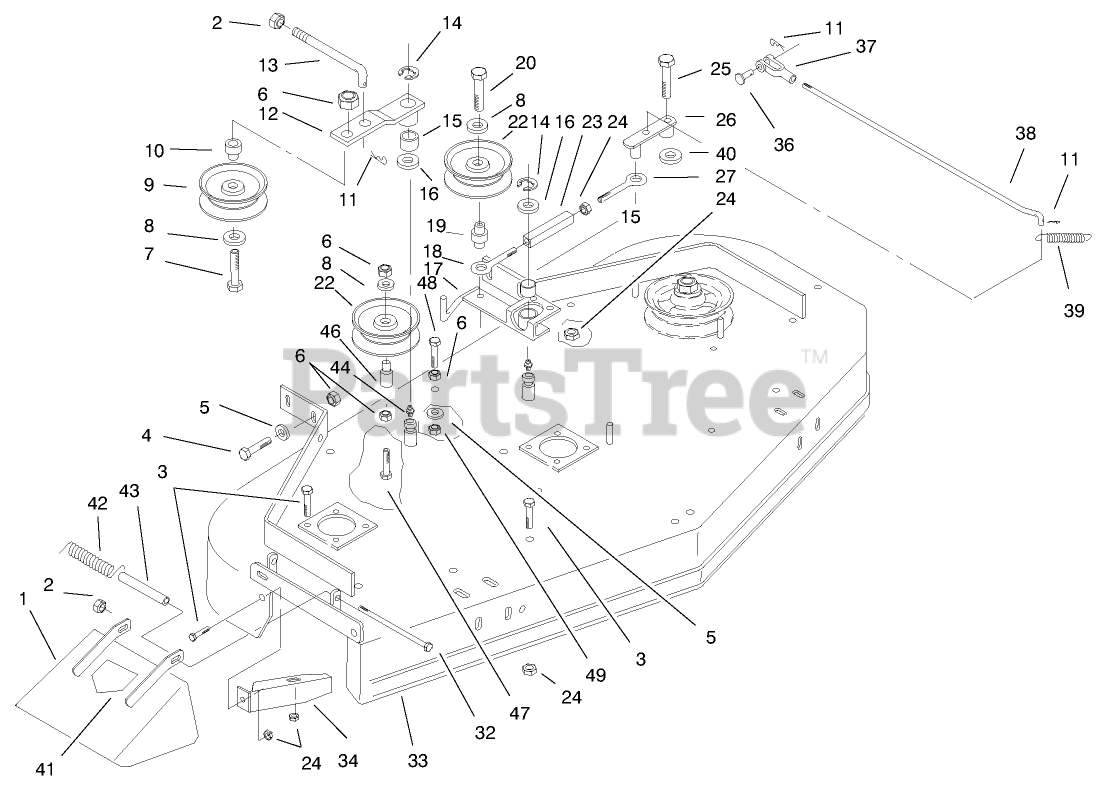

DECK, DRIVE PULLEYS AND DEFLECTOR Parts Diagram

  • Title

1

Toro E404245

Chute-Discharge
(Superseded to 1-404245)

$276.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

3

Toro E800270

Screw-HH
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

6

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro E403119

Pulley-Idler
(Superseded to 1-403119)

$38.99

$

In Stock, only 3 left!

0

10

Toro E603496

Bushing
(Superseded to 1-603496)

$5.49

$

In Stock, Qty 20+

0

11

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

12

Toro E402053

Idler Arm Assembly
(Superseded to 1-402053)

$94.99

$

Usually ships in 3-6 days

0

13

Toro E403107

Rod-Tension
(Superseded to 1-403107)

$39.99

$

In Stock, only 1 left!

0

14

Toro E808505

Ring-Snap
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 9

0

15

Toro E303144

Bearing
(Superseded to 1-303144)

$5.49

$

In Stock, only 4 left!

0

16

Toro E303352

Spindle Washer
(Superseded to 1-303352)

$2.99

$

In Stock, only 3 left!

0

17

Toro E324344

Engagement Arm w/Bushing
(Superseded to 1-324344)

$

$

Not available

18

Toro E303348

Eye Bolt
(Superseded to 1-303348)

$6.49

$

In Stock, Qty 9

0

19

Toro E303434

Bushing
(Superseded to 1-303434)

$14.99

$

In Stock, only 1 left!

0

20

Toro E803003

Bolt-Whizlock
(Superseded to 1-803003)

$

$

Not available

22

Toro E603843

Pulley-Idler
(Superseded to 132-4718)

$34.99

$

In Stock, only 2 left!

0

23

Toro E303236

Turnbuckle Body
(Superseded to 1-303236)

$21.99

$

In Stock, only 3 left!

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro E809084

Bolt-Shoulder
(Superseded to 1-809084)

$9.99

$

Usually ships in 3-6 days

0

26

Toro E322211

Assist Arm ASM
(Superseded to 1-321021)

$87.99

$

Usually ships in 3-6 days

0

27

Toro E303238

Eye Bolt
(Superseded to 1-303238)

$6.49

$

In Stock, Qty 7

0

32

Toro E800291

Screw-HH
(Superseded to 1-800291)

$33.99

$

Usually ships in 3-6 days

0

33

Toro E404244

Deck ASM w/ Decals
(Superseded to 1-404244)

$

$

Not available

34

Toro E402107

Baffle Weldment
(Superseded to 1-402107-01)

$

$

Not available

36

Toro E808280

Pin-Clevis
(Superseded to 1-808280)

$2.99

$

In Stock, only 3 left!

0

37

Toro E303105

Yoke
(Superseded to 1-303105)

$12.99

$

In Stock, only 2 left!

0

38

Toro E323303

Linkage-Assist Arm
(Superseded to 1-323303)

$23.99

$

In Stock, only 2 left!

0

39

Toro E323608

Spring-Extension
(Superseded to 98-5124)

$10.99

$

Usually ships in 3-6 days

0

40

Toro 80-4980

WASHER-THRUST

$27.99

$

Usually ships in 3-6 days

0

41

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0

42

Toro E323575

Spring-Deflector
(Superseded to 98-3280)

$27.99

$

Usually ships in 3-6 days

0

43

Toro E323636

Spacer-Spring
(Superseded to 1-323636)

$42.99

$

Usually ships in 3-6 days

0

44

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

46

Toro E543879

Bushing
(Superseded to 1-543879)

$14.99

$

In Stock, only 1 left!

0

47

Toro E800029

TAP Bolt
(Superseded to 1-800029)

$

$

Not available

48

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

49

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
