30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 099000001 - 099000200) (1999) DECK, COVER AND DECK DRIVE BELTS Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

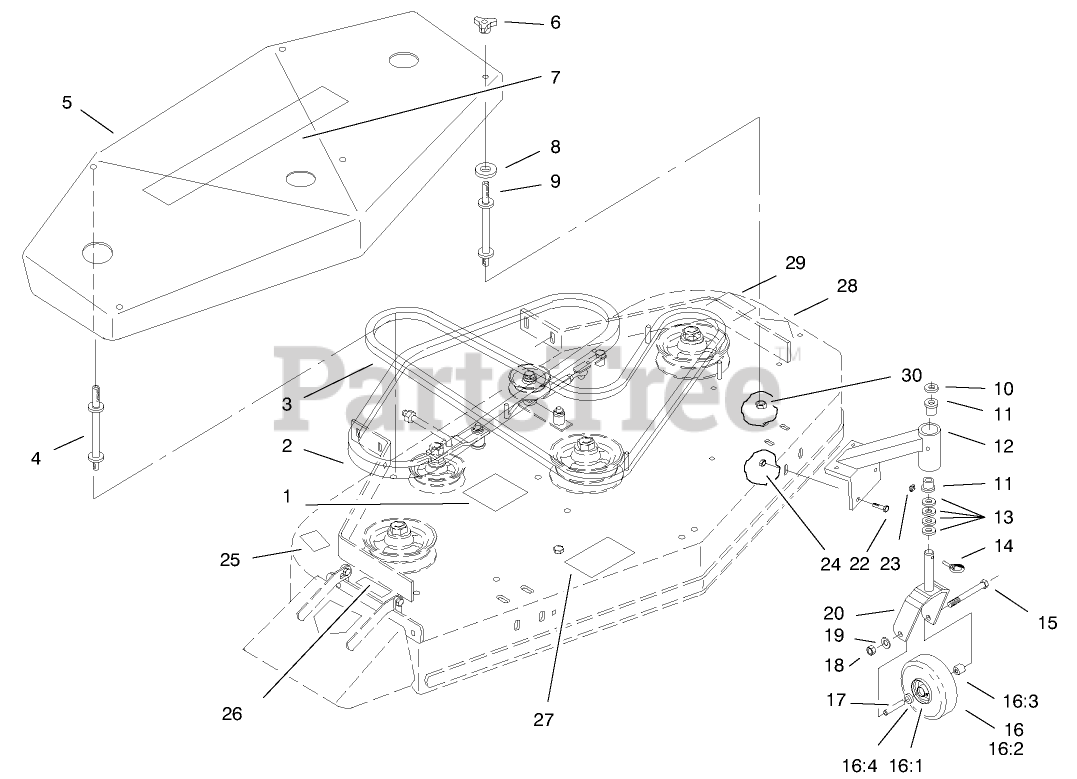

DECK, COVER AND DECK DRIVE BELTS Parts Diagram

  • Title

1

Toro E323594

Decal-Belt Routing
(Superseded to 98-3297)

$16.99

$

Usually ships in 3-6 days

0

2

Toro E403164

Belt-Blade Drive
(Superseded to 1-403164)

$89.99

$

Usually ships in 3-6 days

0

3

Toro E403163

Belt-Blade Drive
(Superseded to 1-403163)

$151.99

$

In Stock, only 1 left!

0

4

Toro E303536

Stud-Belt Shield(Long)
(Superseded to 1-303536)

$7.99

$

In Stock, Qty 20+

0

5

Toro E404246

Cover-Belt
(Superseded to 1-404246)

$

$

Not available

6

Toro E323385

Knob
(Superseded to 1-323385)

$5.49

$

In Stock, Qty 20+

0

7

Toro E323561

Decal
(Superseded to 95-5512)

$

$

Not available

8

Toro E323417

Washer
(Superseded to 1-323417)

$3.49

$

In Stock, Qty 20+

0

9

Toro E303537

Stud-Belt Shield(Short)
(Superseded to 1-303537)

$6.49

$

In Stock, Qty 20+

0

10

Toro E513338

Washer
(Superseded to 1-513338)

$4.49

$

In Stock, Qty 20+

0

11

Toro E303514

Bearing-Flanged
(Superseded to 1-303514)

$12.99

$

In Stock, only 1 left!

0

12

Toro E302194

Support-Caster
(Superseded to 1-302203)

$299.99

$

Usually ships in 3-6 days

0

13

Toro E303314

Spacer
(Superseded to 1-303314)

$6.49

$

In Stock, Qty 5

0

14

Toro E809020

Pin
(Superseded to 1-809020)

$11.99

$

In Stock, only 2 left!

0

15

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

16

Tire and Wheel ASM

$

$

Not available

16:1

Toro E513807

Wheel Hub ASM
(Superseded to 1-513648)

$91.99

$

In Stock, only 1 left!

0

16:2

Toro E513808

Tire
(Superseded to 1-513808)

$43.99

$

In Stock, only 4 left!

0

16:3

Toro E513809

Bearing
(Superseded to 1-513809)

$35.99

$

In Stock, Qty 8

0

16:4

Toro E513810

Bushing
(Superseded to 1-513810)

$5.99

$

In Stock, Qty 17

0

17

Toro E513547

Spacer
(Superseded to 1-513547)

$12.99

$

In Stock, Qty 6

0

18

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro E322145

Fork
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 1 left!

0

22

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

23

Toro E811001

Zerk
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

24

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

25

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

26

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

27

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

28

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

29

Toro E323659

Decal-Torque
(Superseded to 98-5130)

$31.99

$

Usually ships in 3-6 days

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
