30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 089000001 - 089999999) (1998) BRAKE ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

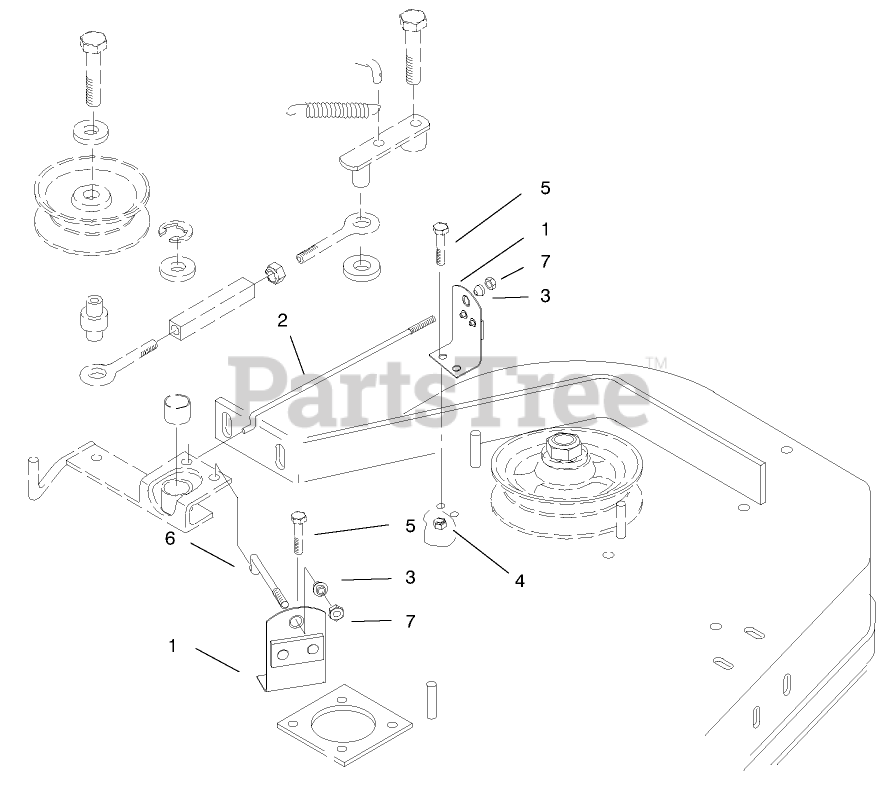

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro E324305

Brake ASM
(Superseded to 1-324305)

$113.99

$

Usually ships in 3-6 days

0

2

Toro E323601

Rod-Brake
(Superseded to 98-5120)

$32.99

$

Usually ships in 3-6 days

0

3

Toro 67-0710

BALL-SWIVEL, STOP

$4.49

$

In Stock, only 2 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro E323600

Rod-Brake
(Superseded to 98-5119)

$25.99

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0
